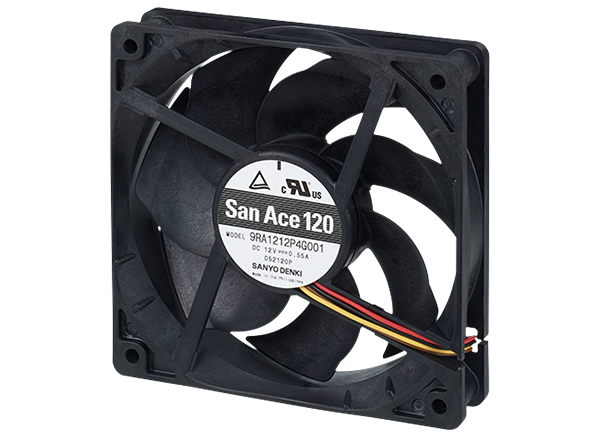

Sanyo Denki San Ace 120 9RA Low Noise, Energy Saving DC Fans
Sanyo Denki San Ace 120 9RA Low Noise, Energy Saving DC Fans are 120mm2 x 25mm or 120mm2 x 38mm low-noise fans that feature half the noise of previous models and 39% lower power consumption. The Sanyo Denki San Ace 120 9RA Low Noise DC Fans offer long life and a 12V to 48V rated voltage range. The series is ideal for cooling medical equipment, AV equipment, and other applications that require particularly quiet operation.
Features
- Low noise (half of the current model)
- Energy-saving (reduced power consumption by 28% to 39%)
- 12VDC, 24VDC, or 48VDC rated voltages
- 50Hz/60Hz, 500VAC dielectric strength for 1-minute
- 10MΩ minimum insulation resistance at 500VDC (between lead wire conductors and frame)
- 120mm2 x 25mm or 120mm2 x 38mm in dimensions
- -20°C to 70°C operating temperature range
Applications
- Medical equipment
- Built-in power supplies
- AV equipment
- Measuring instruments
- Arcade machines
- Communication equipment
Application Examples
120mm x 25mm
120mm x 38mm
