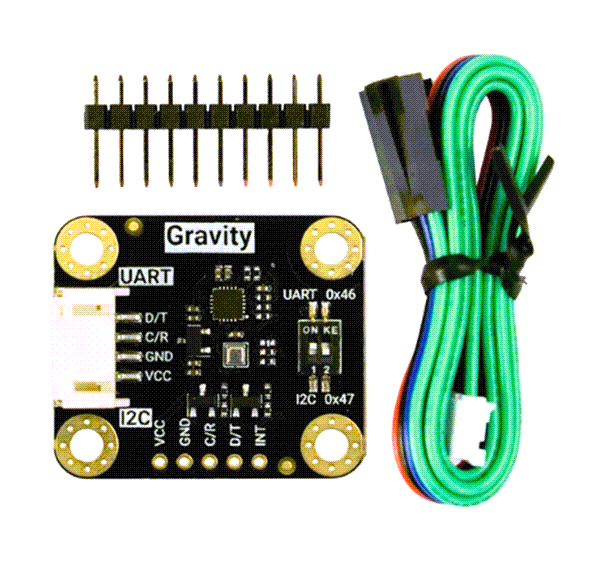

DFRobot SEN0665 Barometric Pressure & Temperature Sensor

DFRobot SEN0665 Gravity Barometric Pressure and Temperature Sensor is a professional-grade digital altimeter designed for applications requiring extreme vertical stability and environmental accuracy. Powered by the next-generation Bosch BMP581, this atmospheric pressure monitor delivers best-in-class absolute accuracy of ±0.3hPa and ultra-low noise (＜ 0.1Pa). Unlike standard modules, it supports native 3.3V/5V operation and offers flexible I²C/UART interfaces, ensuring seamless plug-and-play integration. The DFRobot SEN0665 precision sensor is the optimal solution for drone altitude hold, indoor navigation, and meteorological data logging, where data reliability is critical.

Features

Unparalleled measurement accuracy
Intelligent data processing and stability

Optimized power efficiency
Seamless integration and compatibility

Applications

Drone flight controllers - altitude hold and vertical stability
Navigation - GPS enhancement (dead-reckoning) and floor-level detection

Weather monitoring - personal weather stations and environmental logging
Sports tech - hiking altimeters and fitness trackers

Specifications

Basic Parameters
- 3.3VDC to 5VDC operating voltage
- 700μA operating current
- I2C/UART communication interface
- The communication interface is a PH2.0-4P (Gravity pinout) with a 2.54mm pin header socket
- I2C address is 0x47 (default)/0x46
Physical dimensions
- 32mm × 27mm × 7.18mm PCB dimensions
- 25mm × 20mm mounting hole spacing
- 3.0mm mounting hole diameter

BMP585 parameters
- 30kPa to 125kPa pressure measurement range
- 0°C to 65°C temperature measurement range
- ±0.3hPa (typ.) absolute pressure accuracy
- ±0.06hPa/10kPa (typ.) relative pressure accuracy
- ±0.5m/10kPa relative altitude accuracy
- ±0.5Pa/K temperature drift coefficient
- Pressure data resolution of 1/64
- < 0.1Pa (RMS, without low-pass filter enabled) ultra-low noise
