Texas Instruments REF30/REF30E Low Current Voltage References
Texas Instruments REF30/REF30E Low Current Voltage References are precision, low-power, low-dropout voltage references available in a tiny 3-pin SOT-23 package. REF30E is the enhanced-performance version of the REF30 and is designed for precision applications. The REF30E offers improved initial accuracy and temperature drift while operating at a lower quiescent current of 25µA.
The low power consumption and improved precision make the REF30E very attractive for loop-powered industrial applications, such as temperature and pressure transmitters, and battery-powered applications. The Texas Instruments REF30/REF30E is specified over the extended industrial temperature range of –40°C to +125°C. The REF30 is easy to use in explosion-proof and intrinsically safe applications because it does not require a load capacitor to remain stable.
Features
- SOT-23-3 small industry standard footprint
- High accuracy
- REF30E: ±0.1%
- REF30: ±0.2%
- Excellent temperature drift performance
- REF30E: 15ppm/°C
- REF30: 75ppm/°C
- Low IQ (typical)
- REF30E: 27µA
- REF30: 42µA
- REF30E is a drop-in replacement of REF30
- High output current
- REF30E: ±10mA
- REF30: 25mA
- Output voltage options
- REF30E: 1.25V to 5V
- REF30: 1.25V to 4.096V
- -40ºC to +125ºC temperature range
Applications
- Field transmitter and sensor
- Solar energy
- PLC, DCS, and PAC
- Energy storage systems
- Medical and healthcare
- AC inverter and VF drives
- Handheld test equipment

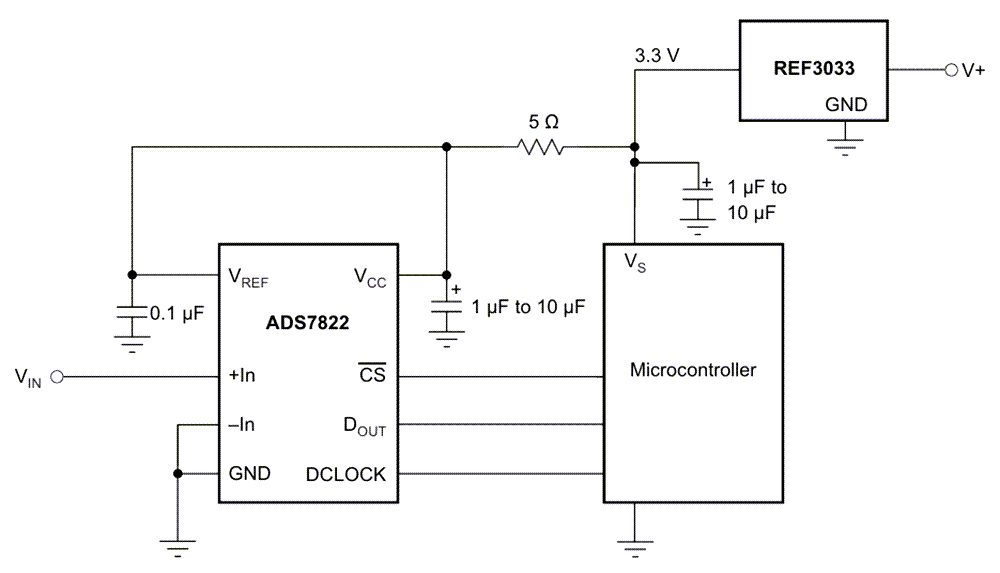

Typical Application
