Texas Instruments TPUL2T223/-Q1 Monostable Multivibrators

Texas Instruments TPUL2T223/-Q1 Monostable Multivibrators comprise two independent RC-configurable non-retriggerable monostable multivibrators developed for 1.5V to 5.5V operation. The output pulse duration is set by selecting external resistance and capacitance values, with an approximate output pulse width of t_wo x R x C.

The TPUL2T223/-Q1 devices feature three trigger inputs for rising-edge or falling-edge triggering, along with an asynchronous clear input that can stop an active output pulse. Schmitt-trigger architecture on all trigger inputs supports slow input transition rates and improves noise immunity. The devices are available in a wettable-flank QFN package, are RC configurable from 1µs to 860ms, and support TTL-compatible operation with a 4.5V to 5.5V supply. The devices also support single-supply voltage translation for selected up-translation and down-translation requirements.

The TI TPUL2T223/-Q1 is optimized for applications such as resetting a system for a fixed period of time, generating a positive fixed-width digital pulse, detecting rising or falling digital signal edges, and debouncing a switch.

The TPUL2T223-Q1 is AEC-Q100 qualified for automotive applications.

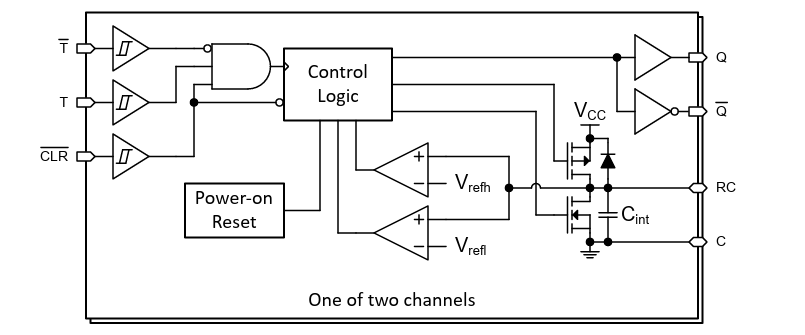

Features

AEC-QI00 qualified for automotive applications:
- Device temperature grade 1: -40°C to +125°C
- Device HBM ESD classification level 2
- Device CDM ESD classification level C4B
Available in a wettable flank QFN package
RC configurable from 1ps to 860ms
For pulses longer than 860ms, use TPUL2T323-Q1
1% typical, 10% maximum pulse width variation
Wide operating range from 1.5V to 5.5V
Inputs accept voltages up to 5.5V
TTL-compatible with 4.5V to 5.5V supply
Schmitt-trigger architecture on all inputs

Single-supply voltage translator (refer to Reduced Input Threshold Voltage):
- Up translation:
  - 1.2V to 1.8V
  - 1.5V to 2.5V
  - 1.8V to 3.3V
  - 3.3V to 5.0V
- Down translation:
  - 5.0V, 3.3V, 2.5V, to 1.8V
  - 5.0V, 3.3V to 2.5V
  - 5.0V to 3.3V
