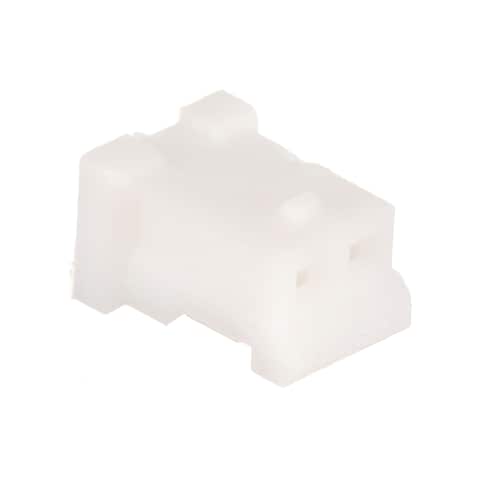

1775441-2

TE Connectivity
571-1775441-2
1775441-2

メーカ:

詳細:
ヘッダ & ワイヤハウジング 2 POS RECPT 1.5mm

データシート:
ECADモデル:
無料のライブラリローダーをダウンロードし、お使いのECADツール用にこのファイルを変換してください。ECADモデルの詳細について

在庫: 101,866

在庫:
101,866 すぐに出荷可能
工場リードタイム:
8 週間 表示されている時間を超える工場生産予定時間。
最小: 1   倍数: 1
ユニット価格:
¥-
合計 額:
¥-
EST関税:

価格 (JPY)

数量 ユニット価格
合計 額
¥20.8 ¥21
¥17.9 ¥179
¥15.8 ¥395
¥14.6 ¥1,460
¥13.1 ¥3,275
¥10.9 ¥10,900
¥9.9 ¥29,700
¥9.1 ¥91,000
¥8.3 ¥166,000

製品属性 属性値 属性の選択
TE Connectivity
製品カテゴリー: ヘッダ & ワイヤハウジング
RoHS:
Wire Housings
Receptacle Housing
2 Position
1.5 mm (0.059 in)
1 Row
Socket (Female)
HPI
Wire-to-Wire
- 55 C
+ 105 C
Bulk
ブランド: TE Connectivity
接点タイプ: Socket (Female)
筺体の色: Natural
ハウジングの雌雄: Receptacle
筐体材質: Thermoplastic (TP)
製品タイプ: Headers & Wire Housings
工場パックの数量: 1000
サブカテゴリ: Headers & Wire Housings
単位重量: 40.106 mg
製品が見つかりました:
類似製品を表示するには、チェックボックスを1つ以上選択します
このカテゴリーの類似製品を表示するには、上記のチェックボックスを1つ以上選択してください。
選択した属性: 0

JPHTS:
392690029
CNHTS:
8538900000
TARIC:
8536699099
CAHTS:
3926909990
USHTS:
8538906000
ECCN:
EAR99

Mini CT Connectors

TE Connectivity / AMP Mini CT Connectors are super-miniature, wire-to-board and wire-to-wire connections using panel-mount intermediary post headers. From 2 to 20 positions, applicable wire sizes AWG28-26, the Mini CT Connectors are used for harness-making by AMP high-speed crimping machines. The Tyco Electronics / AMP Mini CT Connectors consist of wire-mount receptacle connectors and a variety of post headers and two-row headers. The post headers include one-row type headers (DIP, SMT, intermediary panel-mount type) and two-row type headers (DIP, intermediary panel-mount type). Two-row type post headers incorporate two receptacle connectors in a holder.
