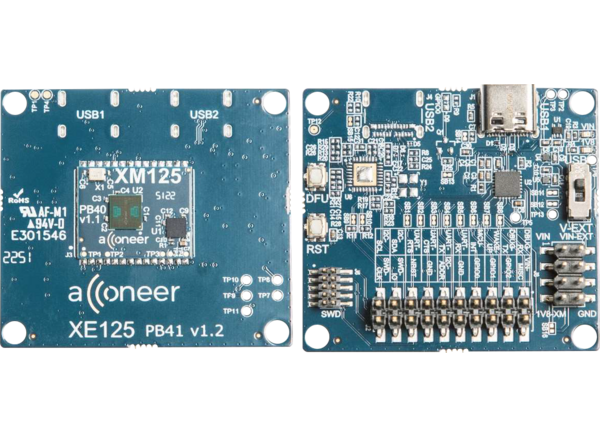

Acconeer XE125 Evaluation Board for XM125
Acconeer XE125 Evaluation Board for XM125 is a versatile tool designed to facilitate evaluating and debugging the XM125 interfaces. The XE125 has the ability to enable flashing of the XM125 via USB-UART or SW-DP. With an integrated A121 sensor, the XE125 board has an operating range of up to 2 meters and field of view of 180 degrees. The A121 sensor operates on a frequency band of 60GHz, a 4GHz bandwidth, and a minimum detectable signal of -105dBm.
Features
- Evaluation and debugging of the XM125 Entry+ module's interfaces
- Flashing of the XM125 module via USB-UART or SW-DP
- XM125 Entry+ module included in the XE125 evaluation board
- Mounting of the XM125 module on the front side of the board
- Various components and connectors are located on the back side of the board
- Versatile tool for testing and optimizing designs
- Comprehensive platform for developers
- Streamlines the design process
- Accelerates time-to-market
- Suitable for both experienced developers and beginners
Applications
- Presence detection
- Distance measurement
- Gesture recognition

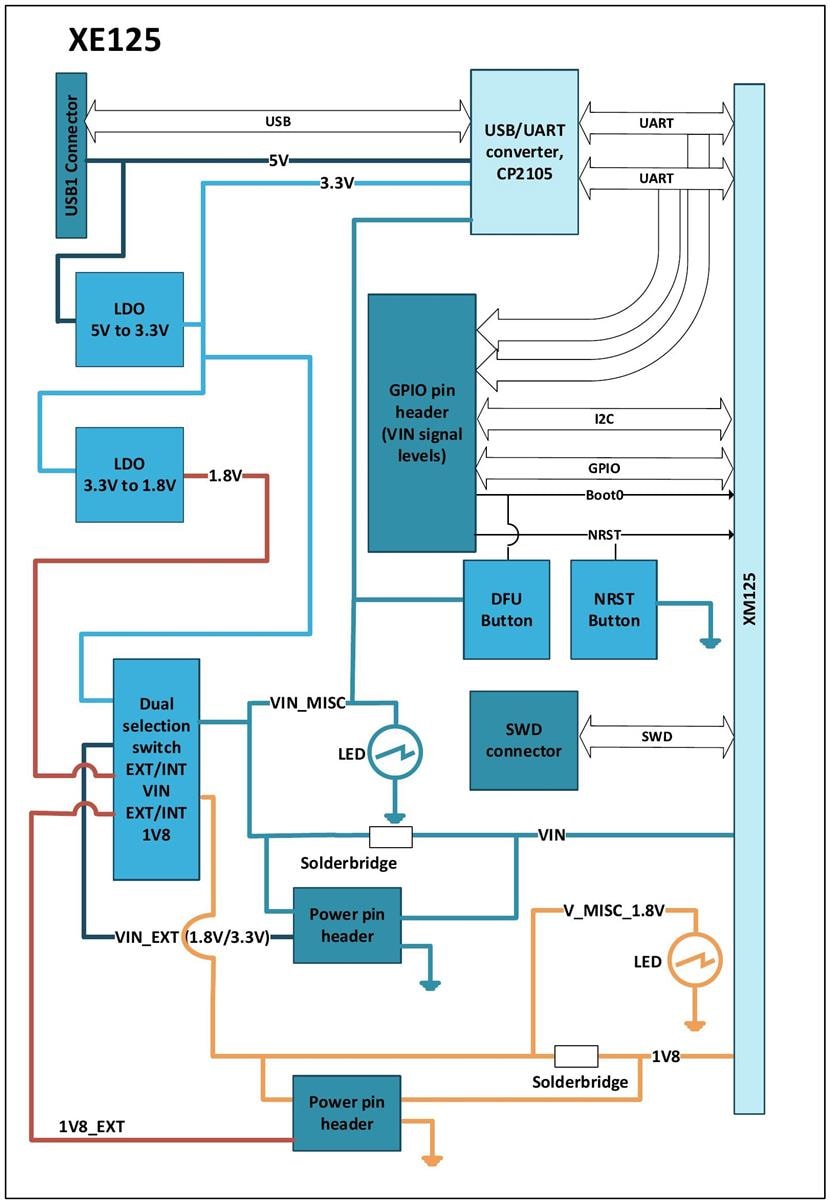

Block Diagram
Kit Contents
- XE125 module board with an integrated A121 sensor
- USB cable
- 2.4GHz antenna
