Acconeer XM112 Pulsed Coherent Radar (PCR) Module

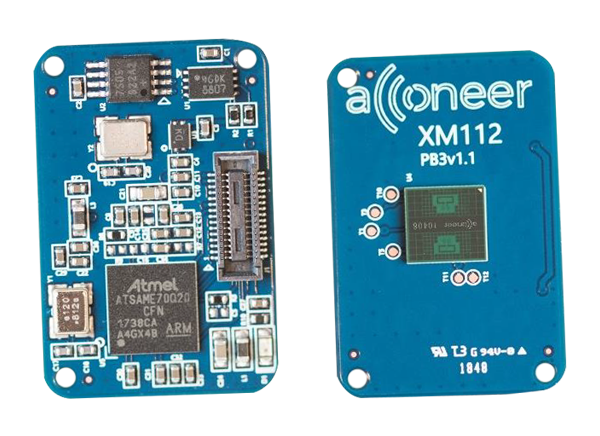

Acconeer XM112 Pulsed Coherent Radar (PCR) Module is a custom evaluation solution for OEMs who wish to have the shortest time to market. The XM112 is used as a controlled module, and an application running on an external host where XM112 is controlled by register-based protocol. The XM112 is also used as a stand-alone module to embed applications on top of RSS (Radar System Software), using the RSS API (Application Programming Interface). The XM112 is a reference module with an optimized form factor (24mm x 16mm) used for commercial use and for evaluation and development purposes to support designs. The XM112 comes with an Atmel ATSAME70Q20A microcontroller (MCU) and A111 Pulsed Coherent Radar (PCR) sensor.
Features
- The A111 60GHz Pulsed Coherent radar (PCR) with integrated baseband, RF front-end, and Antenna in Package (AiP)
- The Atmel ATSAME70Q20A microprocessor base on an ARM® Cortex®-M7, 32-bit, running at up to 300MHz, 384 Kbytes SRAM, and 1Mb Flash
- Formfactor 24mm x 16mm
- Single supply operating voltage 1.8V
- Clock reference 24MHz XTAL
- Operating temperature -40° to 85°C
- External interfaces SPI, UART, I2C
- SWD for SW flash and debug
- External interrupt support

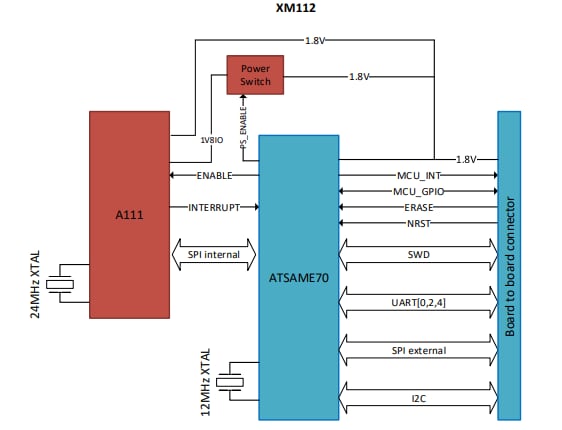

Block Diagram
Related Products
Acconeer A111 Pulsed Coherent Radars
Based on sensor technology with pico-second time resolution, measures absolute distance up to 2m.
Microchip Technology 32ビットマイクロコントローラ
安全なIoTから汎用組み込み制御に至るまで、設計を加速するように設計された32ビットMCUです。
Associated Board
Acconeer XB112 Radar Breakout Board
Designed to make the interfaces from the XM112 module accessible for evaluation and debugging.
