Advanced Energy / SL Power TF3000 3000W Industrial Power Supplies
Advanced Energy / SL Power TF3000 3000W Single-Output Industrial Power Supplies are ideal for power-hungry applications that require reliable power in a small form factor (6.7" x 2.5" x 11"). These applications include automated tests, semiconductor test/handling, and industrial imaging. The TF3000 power supplies provide system scalability, enabling more user-driven features and flexibility to program the output voltage from 0 to 105% of the nominal. Advanced Energy / SL Power TF3000 3000W Single-Output Industrial Power Supplies offer a universal input range, parallel operation with current sharing, and 5V or 9V auxiliary output with digital control/monitoring via RS232, RS485, or I2C.
Features
- 3000W fan-cooled (load and temperature controlled)
- 0 to 105% programmable output voltage and current
- Forced current sharing at parallel operation
- Constant current limit
- Selectable +5V/0.5A or +9V/0.3A auxiliary output
- Universal input range
- LED status indicator
- Power OK signal
- Remote sensing multi-PSU via RS232, RS485, and I2C
- Remote ON/OFF and remote sense functions
- Overtemperature, overvoltage, overload, and fan failure protection
- Global control via RS232
- 3-year warranty
- RoHS compliant
Applications
- Automated tests (ATE)
- Semiconductor test and handling
- Laser cutting
- Large-scale battery test systems
- Oscilloscopes
- Protocol analyzers
- Power meters
- Chromatography
- Rheometers
- Kiosks
- Sorting machines
Specifications
- Input
- 100VAC to 240VAC, ±10%, 47Hz to 63Hz, 1ø 127VDC to 370VDC input voltage and frequency
- Input current
- 19.7A, 115VAC at 2000W output
- 14.5A, 230VAC at 3000W output
- 0 up to 20A current range
- 33A/115VAC or 65A/230VAC inrush current
- 93% efficiency
- 0.95/230VAC and 0.98/115VAC (at full load) power factor
- <3.5mA/240VAC leakage current
- Temperature range
-
- -25°C to +60°C operating
- -40°C to +85°C storage
-
- Output
- 150V to 400V output voltage range
- 3000W continuous output power
- ±5.0% typical voltage range adjustment by a potentiometer (VR1)
- ±2% voltage tolerance
- 14ms/230VAC hold-up time (at full load)
- 1100ms turn-on time
- 300ms rise time (at full load)
- 1500mV pk-pk to 4000mV pk-pk ripple and noise range
- ±1% line and load regulation
- 6.69" x 2.5" x 11.02" dimensions
- >112,000 hours reliability per MIL-HDBK-217F

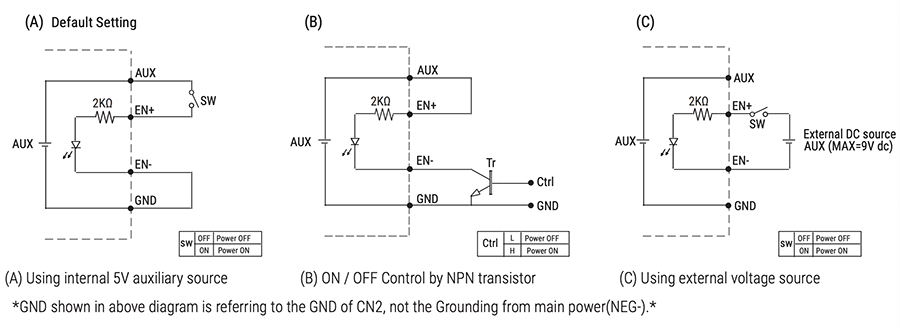

Remote On/Off
