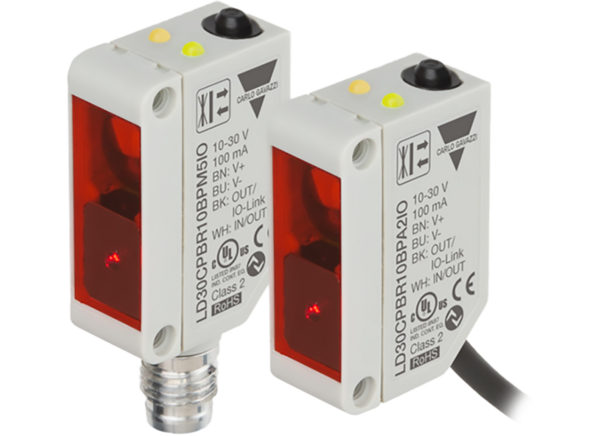

Carlo Gavazzi LD30 PBR IO-Link Smart Photoelectric Laser Sensors
Carlo Gavazzi LD30 PBR IO-Link Smart Photoelectric Laser Sensors offer a sensing distance of 100mm, 300mm, or 600mm, compact housing, and a highly flexible multifunction design. These sensors feature background and foreground suppressions, have a focused visible red laser beam of ø1mm, and are specified to Laser class 1, ensuring they're capable of detecting small objects at long distances or close to a background. LD30 sensors not only offer numerous IO-Link smart options but also have five unique application functions: dual detection, pattern recognition, speed and length, divider, and object and gap monitoring. Carlo Gavazzi LD30 Sensors are available in two housing styles: AISI3 16L stainless steel with IP69K and ECOLAP approvals and an ABS plastic version with IP67 approval.
Features
- Class 1, ø1mm visible red laser beam
- 100mm, 300mm, and 600mm sensing ranges
- Triangulation sensing principle
- Exceptional background suppression
- Exceptional foreground suppression
- Exceptional dual detection sensing
- Fully configurable via output IO-Link v1.1
- Predefined Application Functions
- Dual detection
- Pattern recognition
- Speed and length
- Divider
- Object and gap monitoring
Applications
- Packaging conveyors
- Material handling
- Food and beverage conveyors
- Quality control and inspection
- Part sorting
- Transparent detection

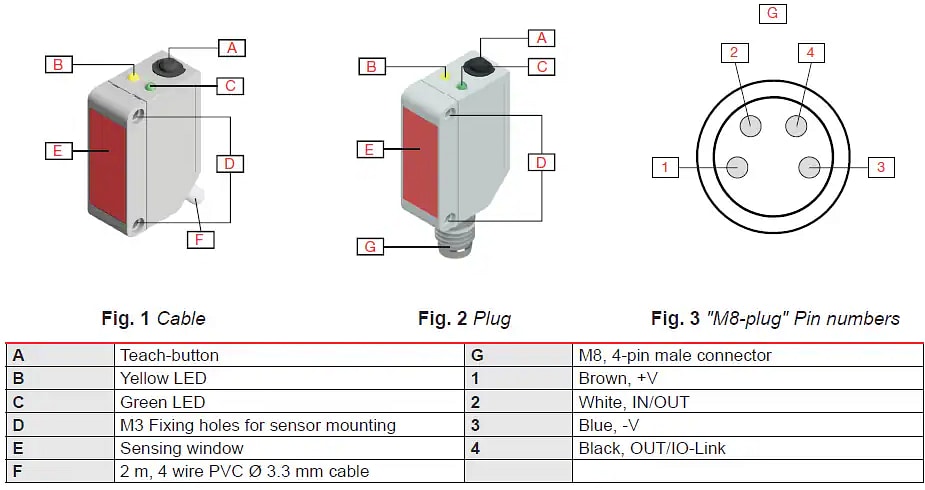

LD30 Structure
