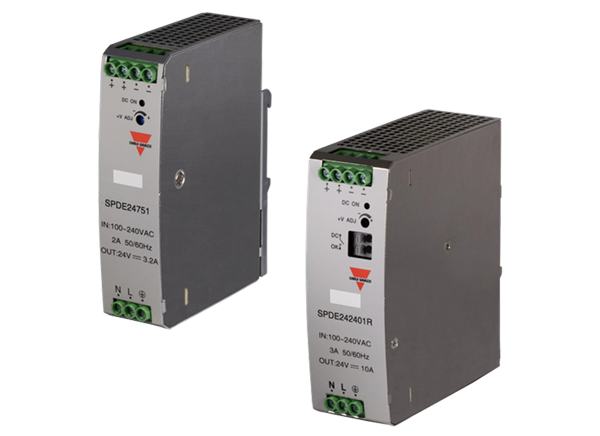

Carlo Gavazzi SPDE Single-Phase DIN-Rail Power Supplies
Carlo Gavazzi SPDE Single-Phase DIN-Rail Switching Power Supplies are ultra-compact devices designed for electrical panels and available in three frame sizes with widths ranging from 32mm for 75W models to 48mm for 480W models. This slim design makes the SPDE series ideal for installation in tight areas. These high-efficiency power supplies offer a universal AC/DC input range with AC voltage (90VAC to 264VAC) or DC voltage (120VDC to 370VDC). The integrated diagnostic and protection functions include output short circuit, overcurrent, overvoltage, and overtemperature. Industry approvals include CE, UKCA, UL 61010, and UL 62368. Carlo Gavazzi SPDE Single-Phase DIN-Rail Switching Power Supplies are optimally suited for applications with limited panel space, such as industrial equipment and machinery.
Features
- Ultra-compact dimensions
- DIN-rail mount
- Flexible installation
- Integrated diagnostic functions
- Output short-circuit, overcurrent, overvoltage, and overtemperature protection
- Built-in active PFC for higher efficiency (-R models only)
- DC OK relay indication (-R models only)
- Efficiency up to 94%
- Overvoltage category II
- CE, UKCA, UL 61010, and UL 62368 approvals
Applications
- Installations with limited panel space
- Industrial equipment
- Machinery
Specifications
- Universal input voltage range
- 90VAC to 264VAC
- 120VDC to 370VDC
- 12VDC, 24VDC or 48VDC output voltage range
- 75W to 480W maximum output power range
Videos

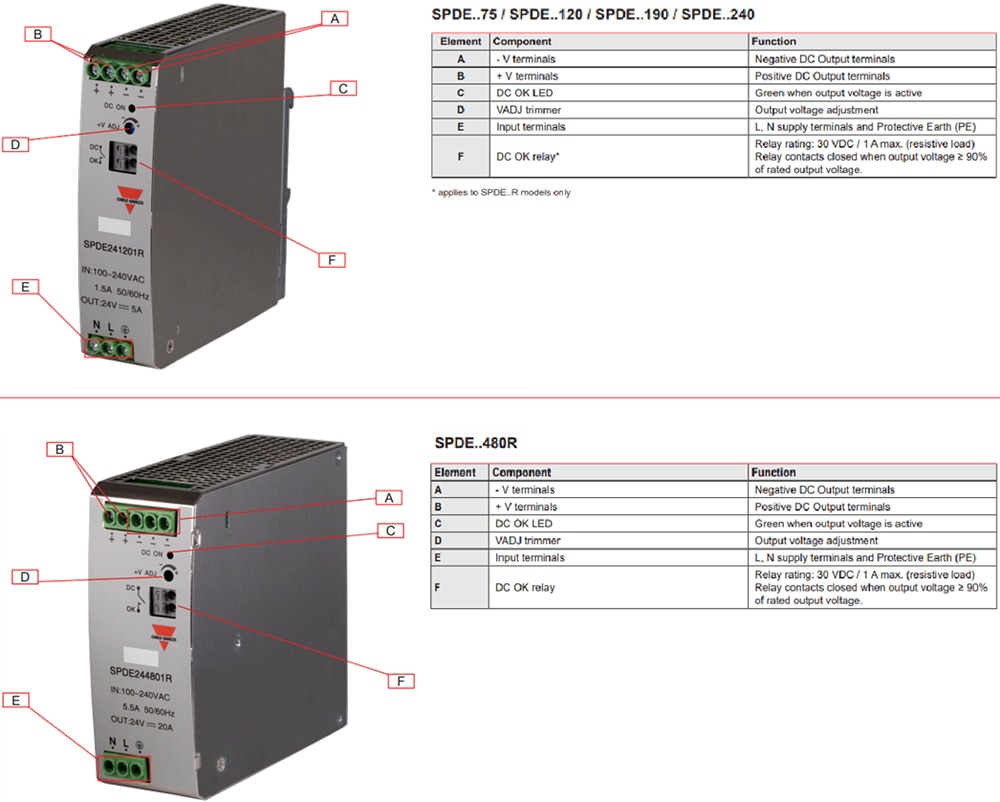

Structure
