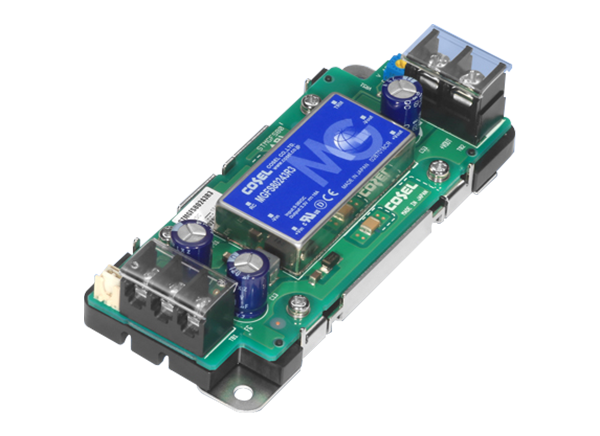

Cosel STMGFS80 80W Isolated Unit Type DC-DC Converters
Cosel STMGFS80 80W Isolated Unit Type DC-DC Converters feature an easy-to-use interface with an input rectifier and output stabilization in wide 9VDC to 36VDC or 18VDC to 76VDC input voltage ranges. These single-output device-embedded power supplies in a metal chassis measure 52mm x 29mm x 117mm (WxHxD) and provide convection/forced air cooling. The STMGFS80 DC-DC Converters offer efficiency up to 92% and are selectable with a case cover, DIN rail mounting bracket, and input/output terminals. The Cosel STMGFS80 80W Isolated Unit Type DC-DC Converters respond to a wide range of applications.
Features
- Isolated unit type DC-DC converter
- Wide 9VDC to 36VDC or 18VDC to 76VDC input voltage ranges
- Available options
- Connector interface
- Case cover
- DIN rail attachment
- Built-in remote ON/OFF
- Built-in overcurrent (recovery automatically) and overvoltage protection
- Built-in output voltage adjustment (for single output, ±10%)
- Convection, forced-air cooling
- 5-year warranty
- RoHS compliant
Specifications
- Output
- 3.3V to 15V voltage range
- 59.4W to 81W maximum output
- 5.4A to 18A current range
- 13.2mV to 60mV maximum line regulation range
- 60mV to 120mV maximum load regulation range
- 20mV to 60mV maximum drift range
- 30ms maximum startup time
- 52mm x 29mm x 117mm (2.05" x 1.14" x 4.61") in dimension (WxHxD)
- Input
- 9VDC to 36VDC or 18VDC to 76VDC voltage range options
- 2.75A to 3.67A or 1.38A to 1.83A typical current options
- 90% to 92% efficiency
- 100kHz to 1500kHz switching frequency
- Temperature ranges
- -20°C to +70‡C operating
- -20°C to +75°C storage
- 20% to 95% relative humidity, non-condensing
