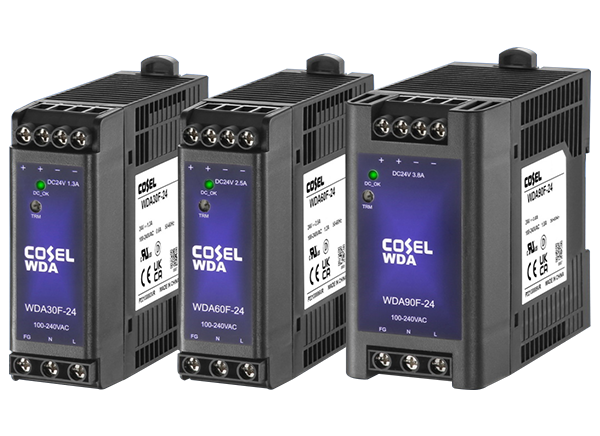

Cosel WDA DIN Rail AC-DC Power Supplies
Cosel WDA DIN Rail AC-DC Power Supplies are available in 30W, 60W, and 90W power levels and have an input range of 85VAC to 264VAC and a low-profile design. These power supplies feature built-in overcurrent protection and overvoltage protection circuits in a cost-effective design. The WDA series power supplies are optimized for conversion cooling and can be operated within an ambient temperature range of -20°C to +70°C. Cosel WDA DIN Rail AC-DC Power Supplies are ideal for a wide range of applications, including measurement and analysis equipment, machine tools, display equipment, process control, and industrial robots.
Features
- Cost-effective design
- Low standby power consumption
- Low profile for space optimization
- High efficiency
- 30W, 60W, and 90W power levels
- 35mm DIN-rail standard
Applications
- Measurement and analysis equipment
- Machine tools
- Industrial robots
- Display equipment
- Process control
Specifications
- 50kHz to 120kHz switching frequency range
- 0.6A to 1.8A input current range
- 85VAC to 264VAC voltage range
- Up to 90% efficiency
- 3000VAC input to output isolation voltage
- 2000VAC input to ground rating
- 500VAC output to ground rating
- <0.75mA leakage current
