DFRobot Gravity: Ring 2D QR Code Scanner

DFRobot Gravity: Ring 2D QR Code Scanner is equipped with an indicator that feeds back the sensor recognition status by showing different colors. This scanner operates at 3.3V/5V and is compatible with UART and I2C communication which makes it easier to develop on controllers like Arduino, ESP32, and Raspberry Pi. Typical applications include self-service vending machines, subway gates, access control, and payment machine.

Features

  • Use-to-connect Gravity interface
  • 3.3V/5V power supply
  • I2C and UART supported

Kit Contents

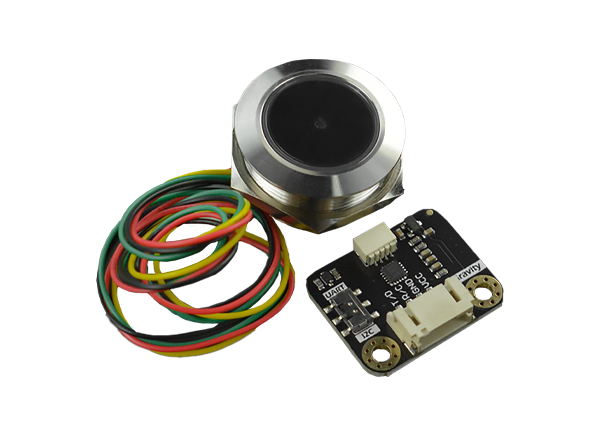

  • 1x Ring 2D QR code scanner
  • 1x Adapter board
  • 1x PH2.0-4P Dupont wire 30cm (red black blue, and green)

Specifications

  • 3.3V/5V power supply (DC)
  • <70mA working current
  • I2C and UART communication
  • 640 x 480 image pixel
  • Light source:
    • Colorful indicator/green light flashing prompt successful reading
  • Code System:
    • 1D: EAN13, EAN8, UPCA, UPCE0, UPCE1, Code128, Code39, Code93, CodeBar, Interleaved 2 of 5
    • 2D: QR code, Data Matrix, PDF417
  • Depth of Field:
    • QR Code (25mm-150mm product performance may be affected to varying degrees due to barcode quality and environmental conditions)
  • ≥25% contrast
  • Reading Angle:
    • Roll 360°, pitch 55°, and yaw 55°
  • Scanning Angle:
    • 69° (horizontal) and 56° (vertical)
  • ≥5mil reading accuracy
  • 20°C to 60°C working temperature range
  • -40°C to 80°C storage temperature range
  • 0Lux to 100000Lux environment light
  • 5% to 95% (non-condensing) relative humidity

Applications

  • Self-service vending machines
  • Subway gates
  • Access control
  • Payment machines

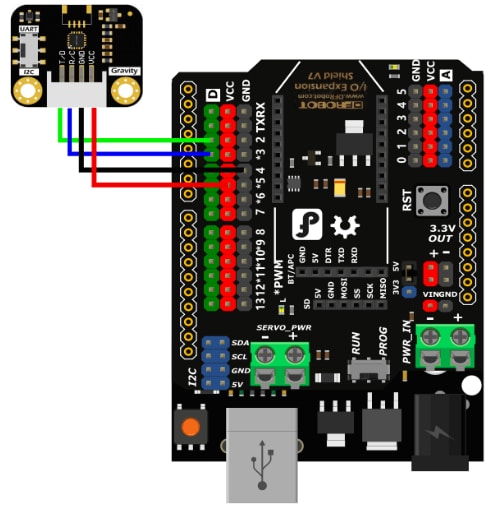

Connection-Diagram with DFRduino UNO R3
