E-Switch TL1016 Miniature Edge-Mount Tactile Switches

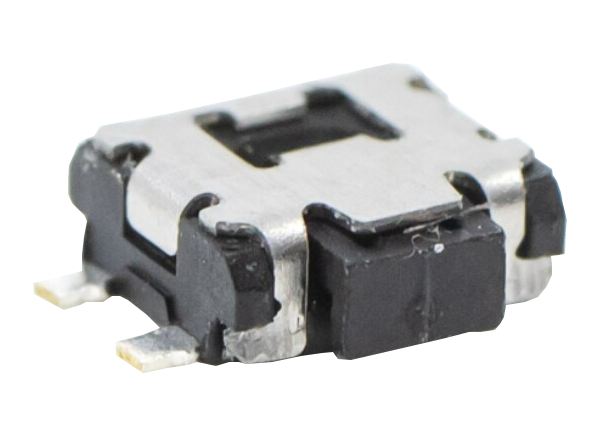

E-Switch TL1016 Miniature Edge-Mount Tactile Switches offer 160gf (black) or 220gf (white) operating force options and up to 100,000-cycle life expectancy in a 4.70mm x 3.5mm x 1.35mm (LxWxH) footprint. E-Switch TL1016 Tactile Switches feature SPST Off-(On) functionality, a 50mA/12VDC contact rating, and dielectric strength of 250VAC for 1 minute. The series operates over a -40°C to +85°C temperature range and is designed for audio/visual equipment, computer peripherals, computer electronics, medical equipment, telecommunication devices, and test and instrumentation equipment.
Features
- Up to 100,000-cycle life expectancy
- Tape-and-reel packaging
- Surface-mount design
- Actuation force options
Applications
- Audio/visual
- Computer peripherals
- Consumer electronics
- Test and instrumentation
- Medical equipment
- Telecommunication
Specifications
- 50mA, 12VDC electrical rating
- 500mΩ maximum (initial) contact resistance
- 100MΩ minimum at 500VDC insulation resistance
- 250VAC dielectric strength for 1 minute
- -40°C to +85°C operating temperature range
- Operating forces
- 160gf +70/-40gf
- 220gf +80/-70gf
- SPST, Off-(On) function
- 10msec maximum bounce

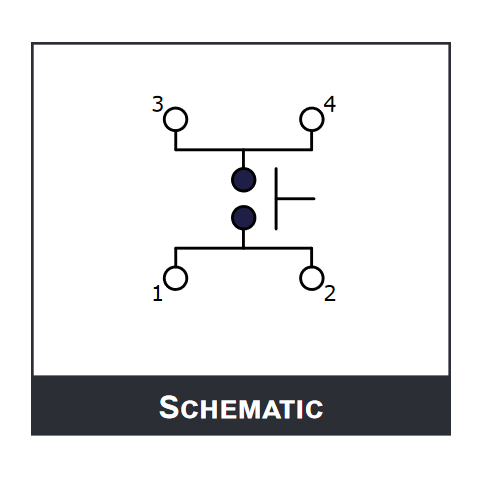

Schematic
