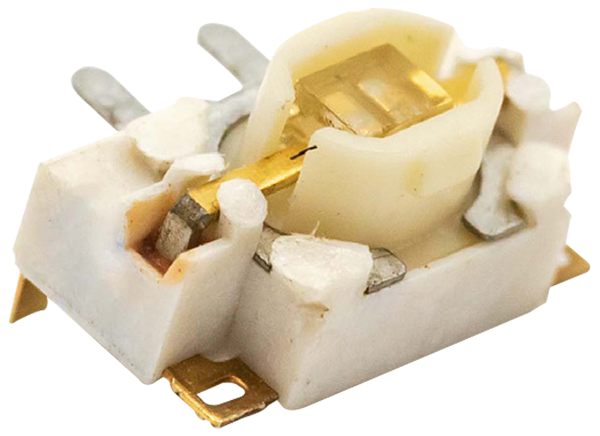

E-Switch TL3275 Tactile Switches
E-Switch TL3275 Tactile Switches feature a life expectancy of up to 100,000 cycles, a surface-mount design, and multiple LED options. The E-Switch TL3275 Tactile Switches offer a 50mA, 12VDC electrical rating, 500mΩ maximum (initial) contact resistance, and 100MΩ minimum insulation resistance at 100VDC. These tact switches operate over a -40°C to +85°C temperature range and are ideal for use in audio/visual applications, computer peripherals, medical equipment, and more.
Features
- Up to 100,000-cycle life expectancy
- Tape-and-reel packaging
- Surface-mount design
- Multiple LED options
- Contact material options
Applications
- Audio/visual
- Computer peripherals
- Consumer electronics
- Instrumentation
- Medical equipment
- Telecommunication
Specifications
- 50mA, 12VDC electrical rating
- 500mΩ maximum (initial) contact resistance
- 100MΩ minimum insulation resistance at 100VDC
- 250VAC dielectric strength for 1 minute
- -40°C to +85°C operating temperature range
- 160gf ±50gf 100,000 cycles operating force
- 0.20mm ±0.10mm travel
- SPST, Off-(On) functions
- 10msec maximum bounce
- Silver or gold contact material
