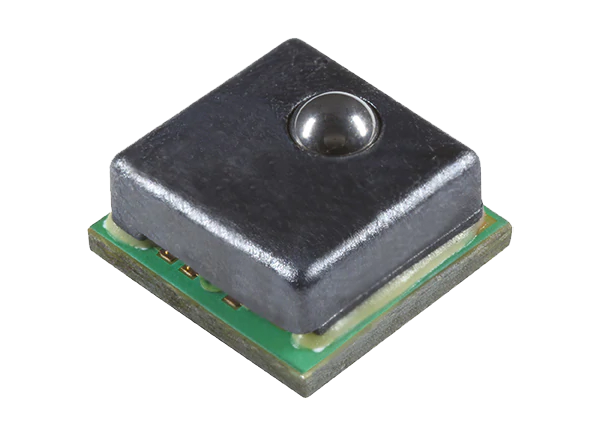

Honeywell FMA MicroForce Sensors

Honeywell FMA MicroForce Sensors are piezoresistive-based force sensors offering a digital output for reading force over the specified full-scale force span and temperature range. Honeywell FMA MicroForce Sensors are fully calibrated and temperature compensated for sensor offset, sensitivity, temperature effects, and nonlinearity using an onboard Application Specific Integrated Circuit (ASIC). Direct mechanical coupling allows for easy interface with the sensor, coupling with tubing, membrane, or a plunger. This easy interface provides repeatable performance and a reliable mechanical interface to the application. FMA sensors are designed and manufactured according to ISO 9001 standards. These sensors offer a more stable output, which is directly proportional to the force applied to the mechanically coupled sphere.

Features

5mm x 5mm (0.20" x 0.20") form factor
±2% full-scale span (FSS) typical accuracy
SPI- or I²C-compatible digital output
Fully calibrated and temperature compensated over a temperature range of +5°C to +50°C
Available in a wide variety of standard and configurable force ranges
3x force range overforce
3.3V_DC or 5.0V_DC typical supply voltage

14mW power consumption
Enhanced part-to-part repeatability
Enhanced reliability
Stable, stainless steel sphere interface
Internal diagnostic functions available
REACH and RoHS compliant

Applications

Industrial
- Load and compression sensing
- Touch panels
- Switch replacement
- Robotic equipment
- Weight measurement
- Force / grip measuring equipment

Medical
- Infusion pumps
- Ambulatory pumps
- Enteral feeding pumps
- Kidney-dialysis machines
