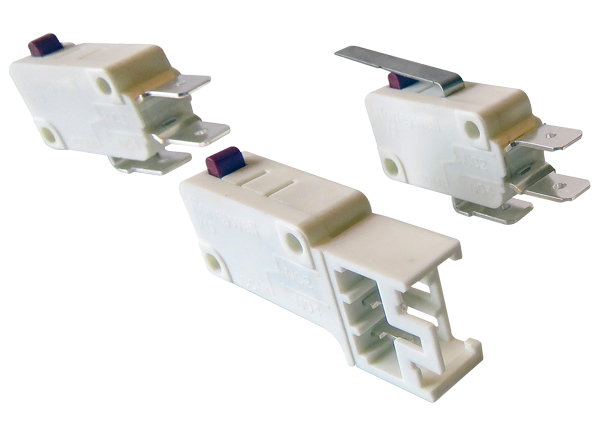

Honeywell V19 Miniature Basic Switches

Honeywell V19 Miniature Basic Switches offer 5A and 16A current ratings, 10Hz to 55Hz vibration resistance, and a 100mΩ insulation resistance. They provide a certified, reliable, and repeatable solution over the product's lifetime. The RAST 2.5 termination and housing construction enable agency certification (UL 94V-0 and IEC 60335-1). Honeywell V19 Miniature Basic Switches are ideal for presence detection, float switches, flow switches, power switches, and operator control applications.

Applications

Major Appliances
- Applications
  - Washing machine
  - Dryer
  - Dishwasher
  - Oven/stove
  - HVAC
  - Refrigeration
  - Ice makers
  - Water dispensers
- Subsystems
  - Door latch switch
  - Motor/pump/compressor/fan power switch
  - Flame switch
  - Off-balance switch
  - Flow switch
  - Centrifugal switch
  - Operator control switches

Small Appliances
- Applications
  - Coffee makers
  - Food processors
  - Microwave ovens
  - Cookers (pressure and rice)
- Subsystems
  - Door latch switch
  - Operator control switches
  - Float switch
  - Presence detection
  - Safety switch

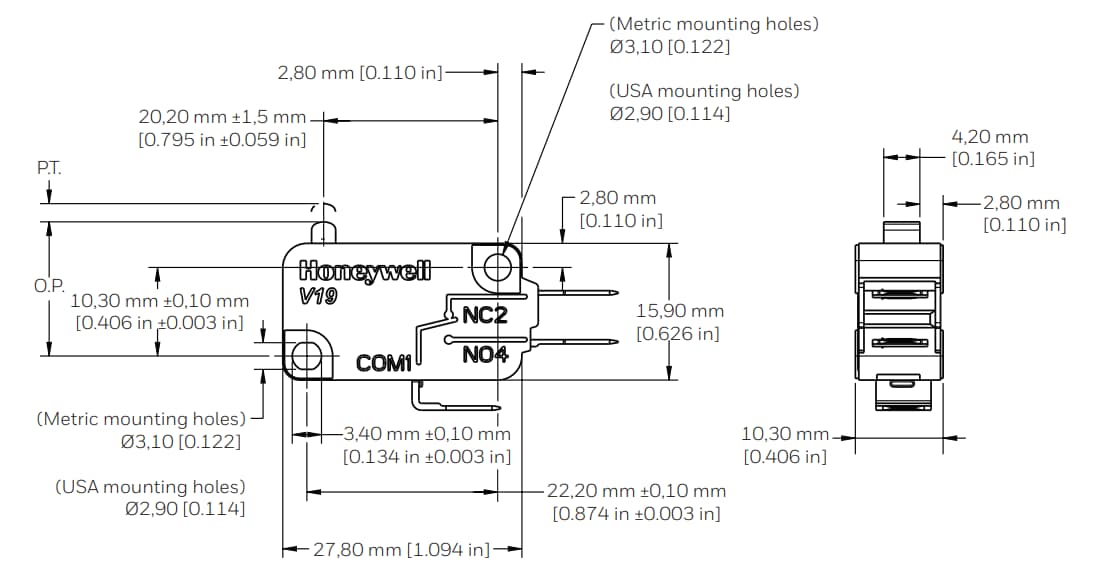

Mounting Dimensions

Additional Resources

Installation Instructions
