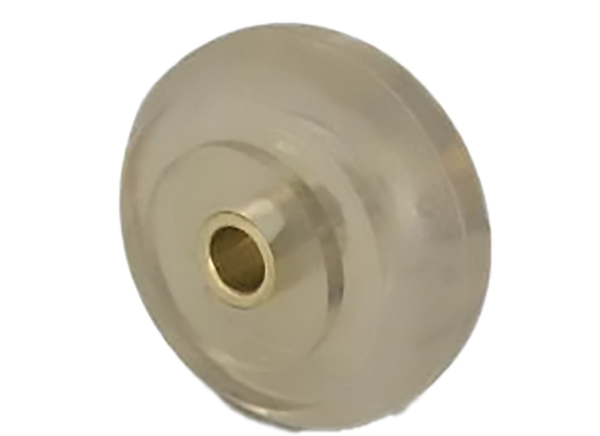

Taica A/B/S Bush-Type Anti-Vibration Gel Bushings
Taica A/B/S Bush-Type Anti-Vibration Gel Bushings are used with thru-bolts to minimize horizontal vibration and handle an optimum load of 0.2kg to 32kg. These gel bushings feature high-performance damping, protection from low-frequency vibration, ultra-soft silicone material, and outstanding durability. The A/B/S bush-type anti-vibration gel bushings offer soft and mechanically reinforced strength that allows for a smaller build and ensures long-term high performance. The collar material of the gel bushing is made of brass.
Features
- High-performance damping
- Used with thru-bolts to minimize horizontal vibration
- Protects parts from low-frequency vibration
- 0.2kg to 32kg optimum load based on 4 points of support (usage)
- Ultra-soft silicone material
- Outstanding durability
- Brass collar material

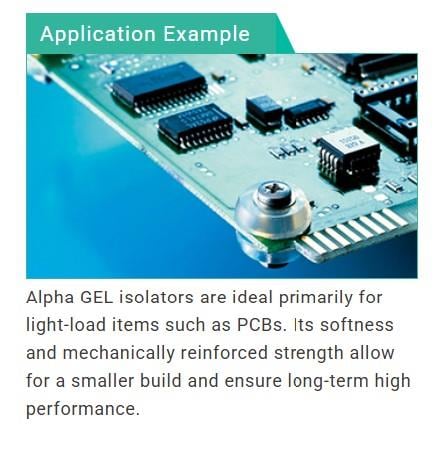

Application Example

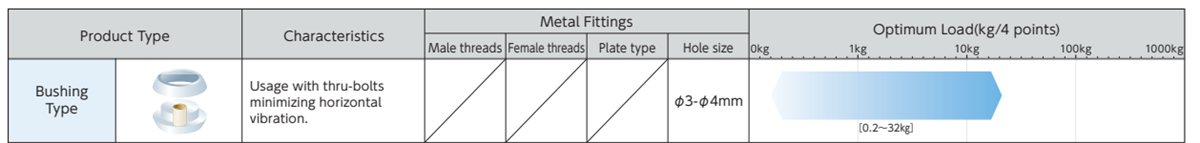

Product Map
Product Map

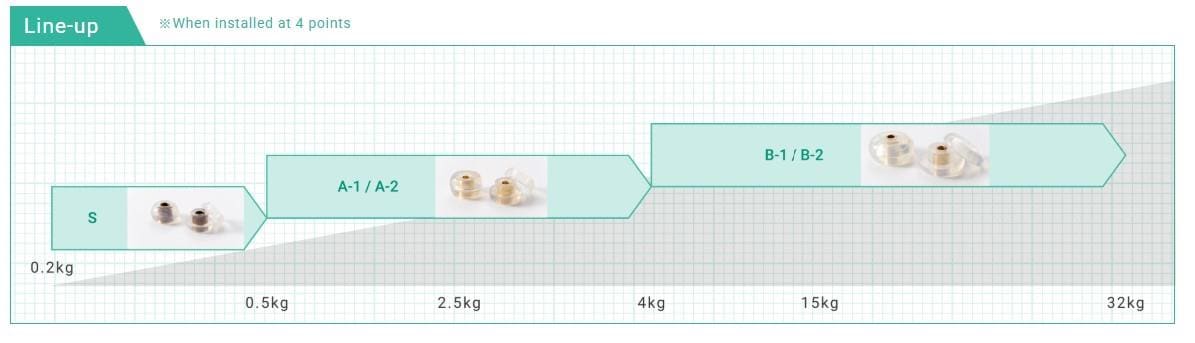

Line-Up: Where GEL Bush Series Fits

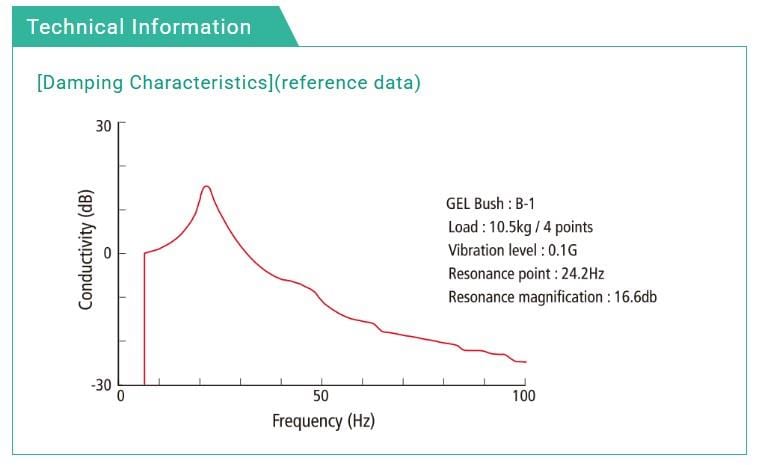

Technical Information

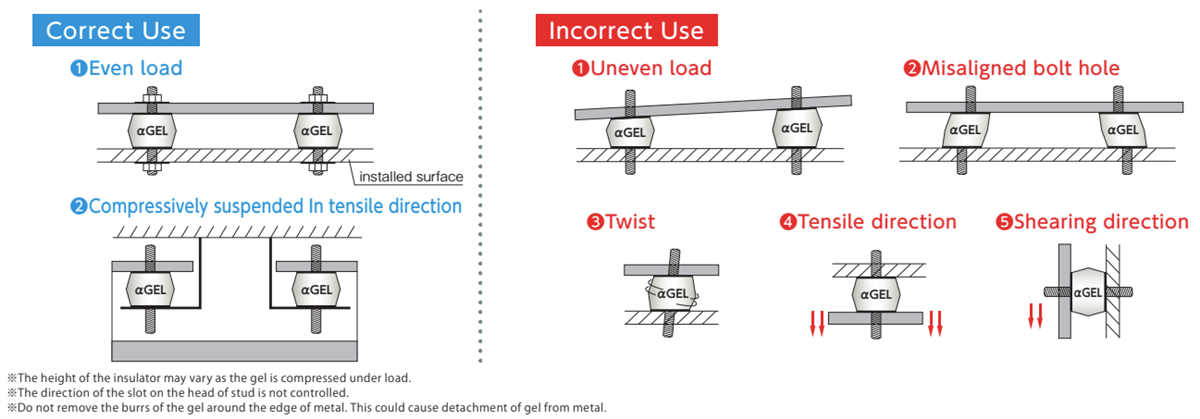

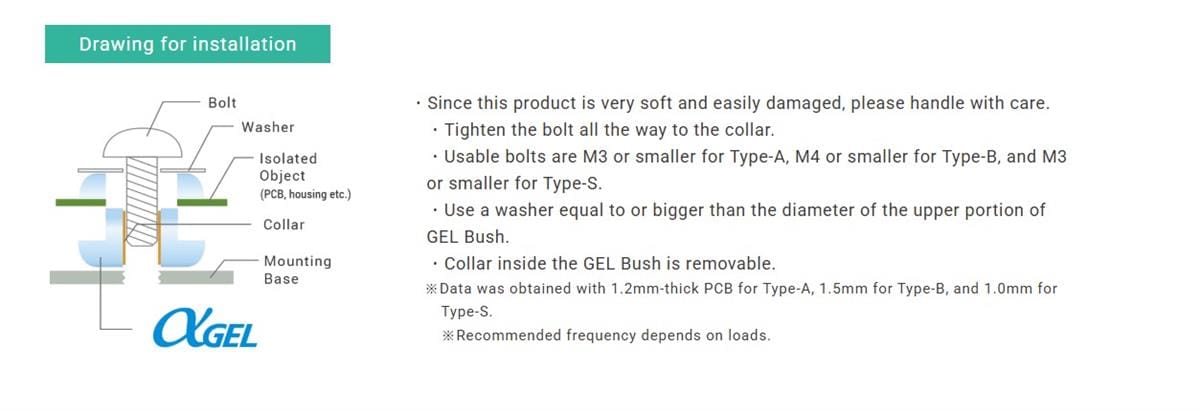

Usage Note
Related Product
Taica Vibration Insulators
Designed for vibration insulation in loads from 2kg to 300kg with four points of support.
