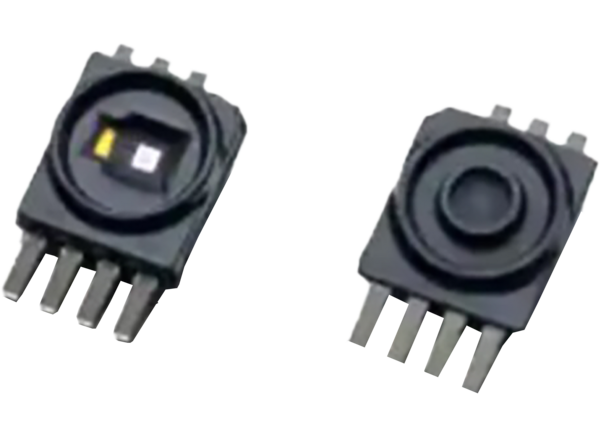

Melexis MLX90823 Relative Pressure Sensors

Melexis MLX90823 Relative Pressure Sensors feature a compact design that doesn't require a PCB to integrate into various systems and applications. The Melexis MLX90823 has factory calibration and an analog output that delivers precise measurements of relative pressure spans ranging from 0.1 to 1.5 bars.

Features

PCB-less relative pressure sensor
Up to 0.5% full-scale accuracy over extended mission profiles
Operating temperature from -40°C to 160°C
Robustness
- Over (+40V) and reverse (-40V) voltage capabilities
- Excellent module-level EMC performance
- Harsh media resistance against halogens, acids
Analog output
Fast response time <400µs

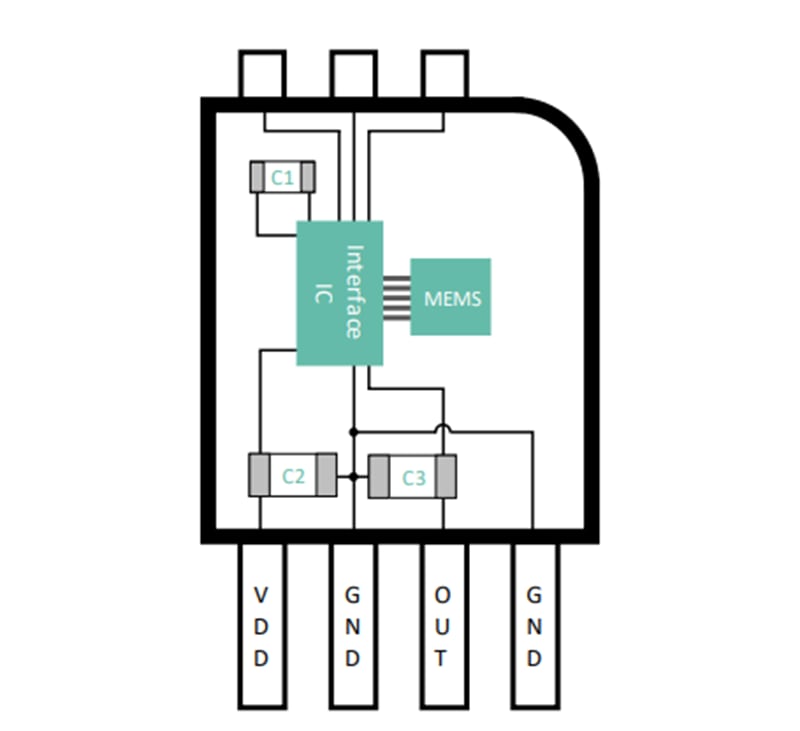

All-in-one MEMS, interface, and passive components

Certification
- AEC-Q100 (automotive) and AEC-Q103-002 (pressure sensor MEMS)
- ASIL compliant developed as an ASIL A SEooC (ISO 26262)
Factory-calibrated or fully programmable through the connector with PTC-04 for customized calibration curves
Configurable diagnostic features
Package RoHS-compliant SMP-7 (XP)
- Easy to integrate, ridges to enable glued pressure seals
