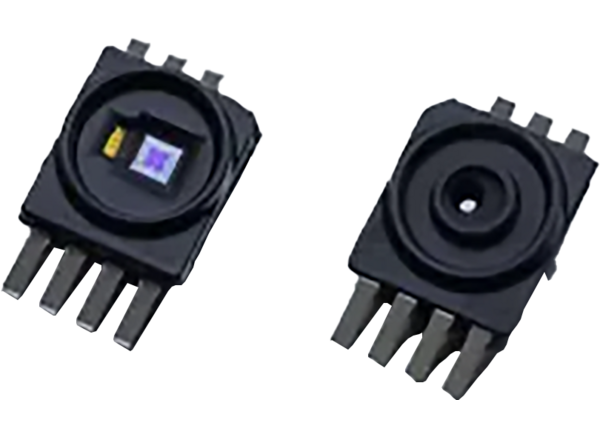

Melexis MLX90825 Relative Pressure Sensors

Melexis MLX90825 Relative Pressure Sensors is a sophisticated relative pressure sensor IC to take measuring capabilities to the next level. The Melexis MLX90825 has many features, including a factory-calibrated design and a SENT output. The device is accurate and reliable, with the ability to measure pressure spans ranging from 0.1 to 1.5 bars.

Features

PCB-less relative pressure sensor
Up to 0.5% full-scale accuracy over extended mission profiles
Operating temperature from -40°C to 160°C
Robustness
- Over (+40V) and reverse (-40V) voltage capabilities
- Excellent module-level EMC performance
- Harsh media resistance against halogens, acids
Digital SENT output
Pre-calibrated NTC thermistor input

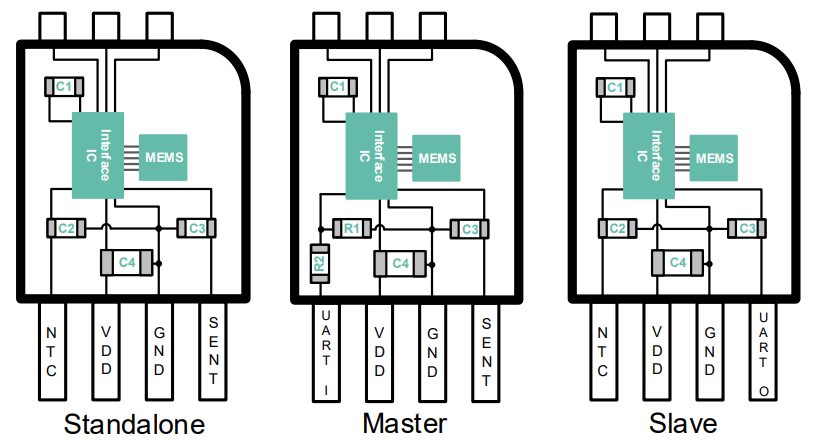

All-in-one, MEMS, interface, and passive components

Certification
- AEC-Q100 (automotive) and AEC-Q103-002 (pressure sensor MEMS)
- ASIL compliant developed as an ASIL B SEooC (ISO 26262)
Factory-calibrated or fully programmable through the connector with PTC-04 for customized calibration curves
Configurable diagnostic features
Package RoHS-compliant SMP-7 (XP)
- Easy to integrate, ridges to enable glued pressure seals
