MEMSIC MXC3638AL 3-Axis Automotive Grade Accelerometers
MEMSIC MXC3638AL 3-Axis Automotive Grade Accelerometers are ultra-low-power, low-noise, integrated digital output accelerometers. Low noise and power are intrinsic in the monolithic fabrication process, where the MEMS accelerometer is incorporated in a single chip with the electronics integrated circuit.
The MEMSIC MXC3638AL internal sample rate can be set from 14Hz to 1300Hz. Specific tap or sample acquisition conditions can trigger an interrupt to a remote MCU. Alternatively, the device supports the reading of a sample and event status through polling.
Features
- Range, sampling, and power
- ±2g, ±4g, ±8g, ±12g, or ±16g ranges
- 8-bit, 10-bit, or 12-bit resolution with FIFO and 14-bit single samples
- Sample rate 14 to 1300 samples/sec
- Sample trigger via internal oscillator, clock pin, or software command
- Sniff and wake modes
- 0.4μA sniff current at 6Hz
- Separate or combined sniff/wake
- Ultra-low power with 32-sample FIFO
- 0.9μA typical current at 25Hz
- 1.6μA typical current at 50Hz
- 2.8μA typical current at 100Hz
- 36μA typical current at 1300Hz
- Simple system integration
- I2C interface, up to 1MHz
- SPI Interface, up to 8MHz
- 2.0mm x 2.0mm x 0.94mm 12-pin package
- Single-chip 3D silicon MEMS
- Low noise to 2.3mgRMS
- ROHS compliant
- AEC-Q100 Class 3
Applications
- Vehicle smart key
- Vehicle side door drive
Block Diagram

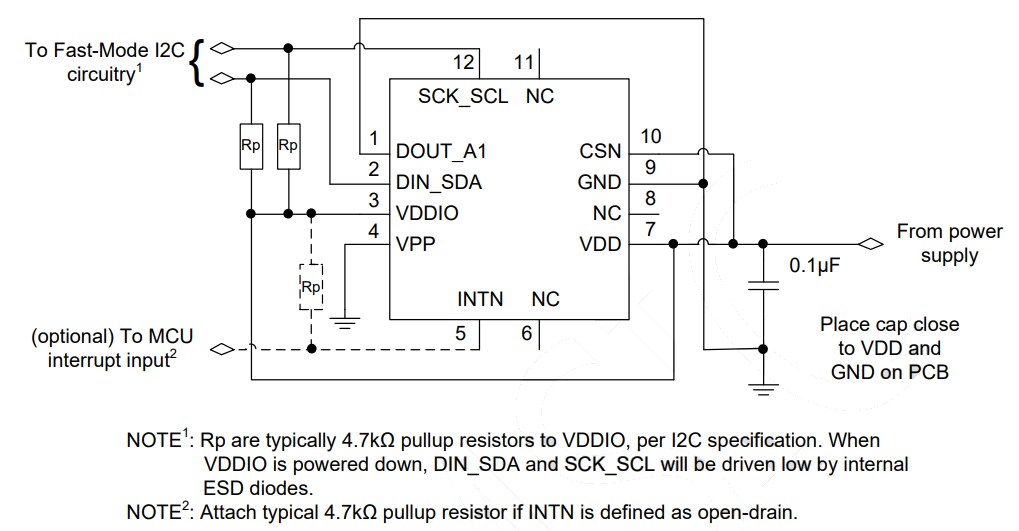

Typical I2C Application Circuit
Typical 3-wire SPI Application Circuit
Typical 4-wire SPI Application Circuit
