Ledil C18x ADELIA LED Lighting Mounting Accessories
LEDiL C18x ADELIA LED Lighting Mounting Accessories are the base part for ADELIA reflectors. These accessories are compatible with the HEKLA interface (C18323 and C18432) and BJB + B+W connectors (C18324 and C18431). The C18x ADELIA accessories are RoHS and REACH compliant.
Features
- C18323 ADELIA-110-ADAPTER-C:
- Compatible with HEKLA interface
- Ø 54mm dimensions
- 0.60mm height
- C18324 ADELIA-110-ADAPTER-B:
- Compatible with BJB + B+W connectors
- Ø 54mm dimensions
- 0.50mm height
- C18431 ADELIA-ADAPTER-B:
- Compatible with BJB + B+W connectors
- Ø 38mm dimensions
- 0.50mm height
- C18432 ADELIA-ADAPTER-C:
- Compatible with HEKLA interface
- Ø 30mm
- 0.50mm

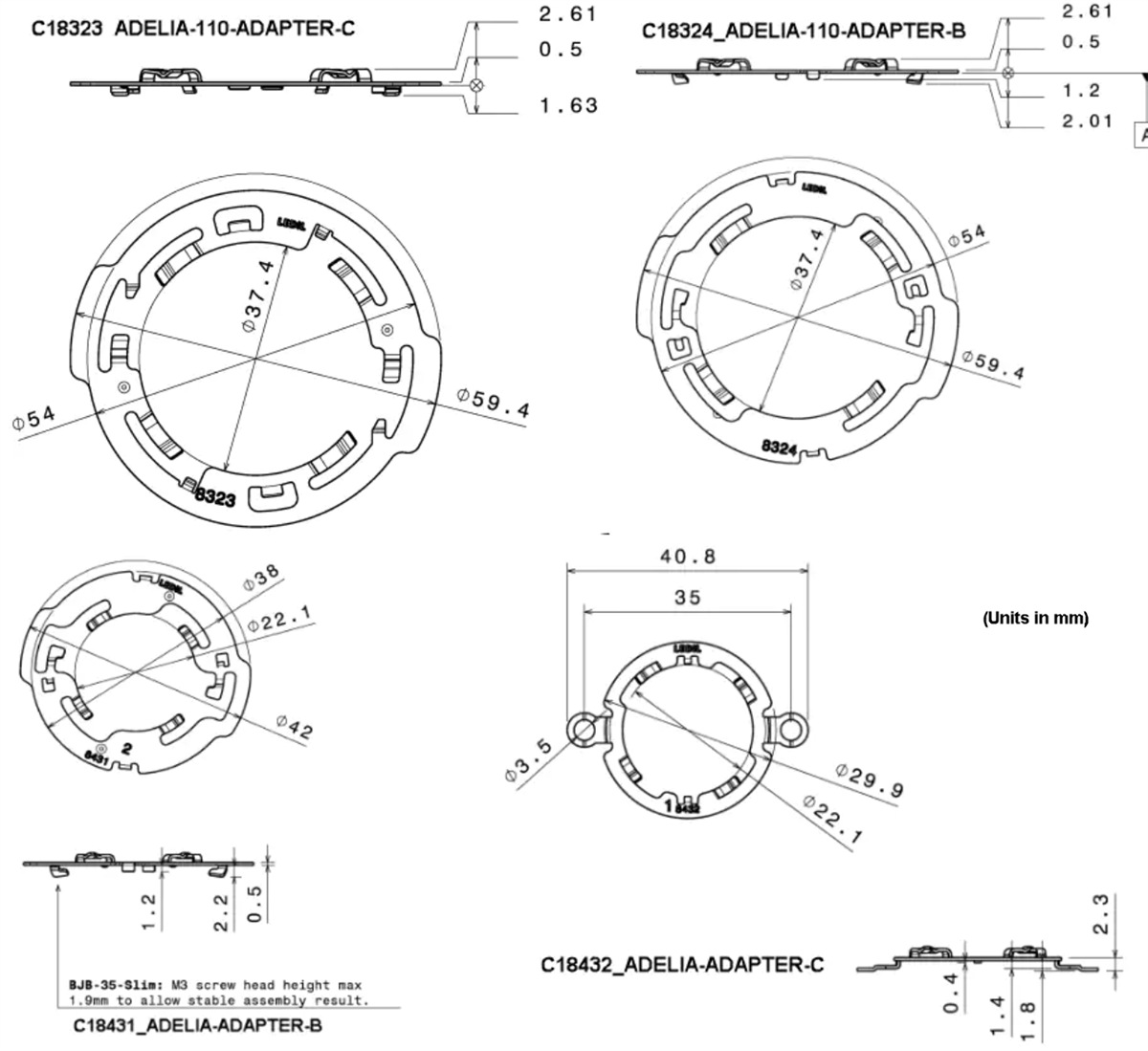

Mechanical Drawing
Associated Product
Ledil ADELIA-110 LED Lighting Reflectors
Premium aluminum reflectors that combine stunning high-quality aesthetics with premium light quality
Ledil ADELIA-75 LED Lighting Reflectors
Premium aluminum reflectors that combine stunning high-quality aesthetics with premium light quality
Ledil ADELIA-70 LED Lighting Reflectors
Premium aluminum reflectors that combine stunning high-quality aesthetics with premium light quality
Ledil ADELIA-50 LED Lighting Reflectors
Premium aluminum reflectors that combine stunning high-quality aesthetics with premium light quality
View Results ( 4 ) Page
| 部品番号 | データシート | シリーズ | 直径 | 高さ | 使用目的 |
|---|---|---|---|---|---|
| C18432_ADELIA-ADAPTER-C |  |
ADELIA | 29.9 mm | 0.5 mm | ADELIA Reflector |
| C18323_ADELIA-110-ADAPTER-C | |
ADELIA-110 | 0.6 mm | ADELIA Reflector | |
| C18324_ADELIA-110-ADAPTER-B | |
ADELIA-110 | 54 mm | 0.5 mm | ADELIA Reflector |
| C18431_ADELIA-ADAPTER-B | |
ADELIA | 38 mm | 0.5 mm | ADELIA Reflector |
公開: 2023-01-16
| 更新済み: 2023-02-21
