PANJIT MBR5H60PC Schottky Barrier Rectifiers
PANJIT MBR5H60PC Schottky Barrier Rectifiers are surface-mount ultra-low reverse current (IR) rectifiers with a 60V maximum recurrent peak reverse voltage. These rectifiers also feature a 5A maximum average forward rectified current, low leakage current, low power loss, high efficiency, and high surge current capability. The MBR5H60PC Schottky barrier rectifiers are lead-free in compliance with EU RoHS 2.0 and green molding compound as per IEC 61249 standard. These rectifiers operate from -55°C to 175°C junction temperature range and are available in the TO-277C package.
Features
- Low leakage current
- Low power loss
- High efficiency
- High surge current capability
- Terminals are solderable per MIL-STD-750, method 2026
- Available in the TO-277C package
- Available with (MBR5H60PC-AU_R2_000A10)/without (MBR5H60PC_R2_00701) automotive qualification standards
- Lead-free in compliance with EU RoHS 2.0
- Green molding compound as per IEC 61249 standard
Specifications
- 60V maximum recurrent peak reverse voltage
- 5A maximum average forward rectified current
- -55°C to 175°C operating junction temperature range
- 60V maximum DC blocking voltage
- 42V maximum RMS voltage

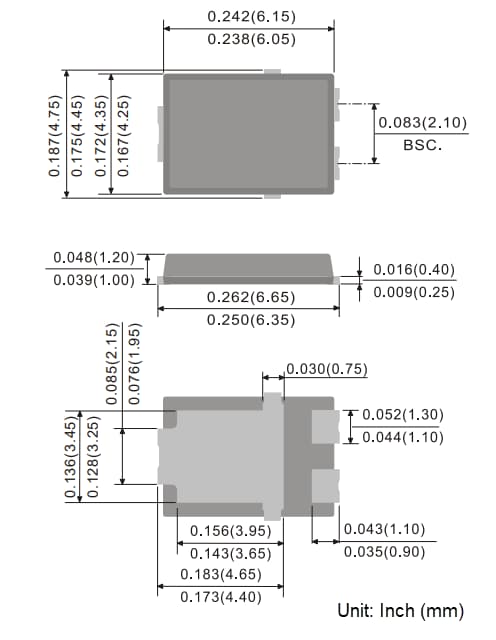

TO-277C Package Dimension Diagram
