PANJIT SB52AFC to SB56AFC Schottky Barrier Rectifiers

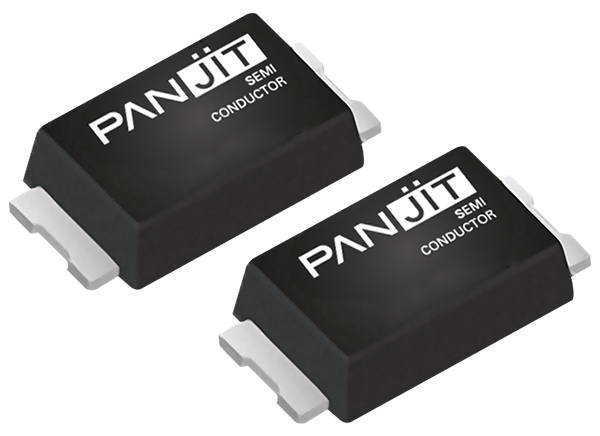

PANJIT SB52AFC to SB56AFC Surface Mount Schottky Barrier Rectifiers offer low power loss, high efficiency, and high surge current capability. The SB53AFC-AU, SB54AFC-AU, and SB56AFC-AU are AEC-Q101 qualified. The devices are lead-free, solderable, and housed in a molded plastic SMAF-C package.
Features
- Max voltage range 20V to 60V
- Low power loss, high efficiency
- High surge current capability
- AEC-Q101 qualified (SB53AFC-AU, SB54AFC-AU, and SB56AFC-AU)
- Lead-free in compliance with EU RoHS 2.0
- Green molding compound as per IEC 61249 standard
- Molded plastic, SMAF-C plastic
- Solderable per MIL-STD-750, method 2026 terminals

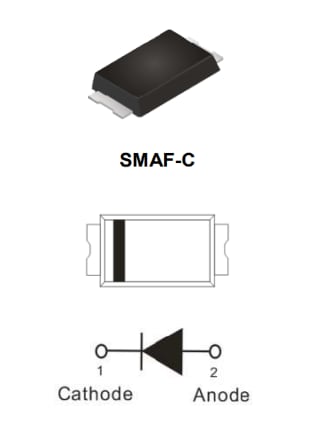

Package Style
