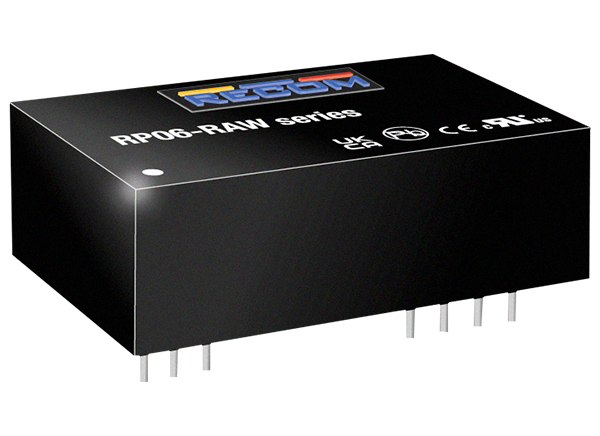

RECOM Power RPxx-RAW Series DC-DC Converters

RECOM Power RPxx-RAW Series DC-DC Converters offer an ultra-wide 4:1 input range of 36V_DC to 160V_DC and a 3kV_AC/1min reinforced isolation rating. These converters feature remote on/off, input undervoltage lockout and overvoltage, short-circuit, and overload relay protection. RPxx-RAW converters are suitable for 72V_DC, 96V_DC, and 110V_DC railway systems and are also built for non-railway high-voltage battery applications. RECOM Power RPxx-RAW Series DC-DC Converters are available in an industry-standard, compact DIP24 package and operate in a -40°C to +105°C temperature range.

Features

Ultra-wide 4:1 input range
Input undervoltage lockout
Overvoltage protection

Short-circuit protection
Overload relay protection
Remote on/off

Applications

Railway systems
Battery management systems
IoT sensors

Electric forklift trucks
High-voltage battery applications

Specifications

Power ratings
- RP03-RAW: 3W
- RP06-RAW: 6W
- RP10-RAW: 10W
36V_DC to 160V_DC input range

3kV_AC/1min reinforced isolation
-40°C to +105°C operating temperature range without derating
Compact DIP24 package
Certified for railway applications (EN50155)

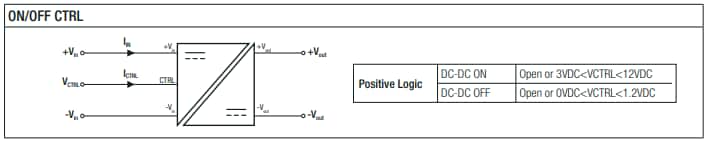

ON/OFF CONTROL

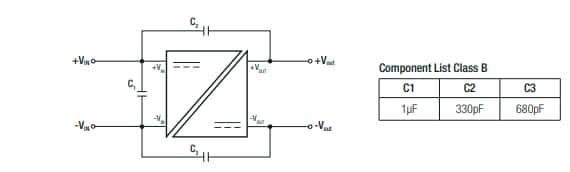

EMC Filtering Suggestions per EN5503/35
