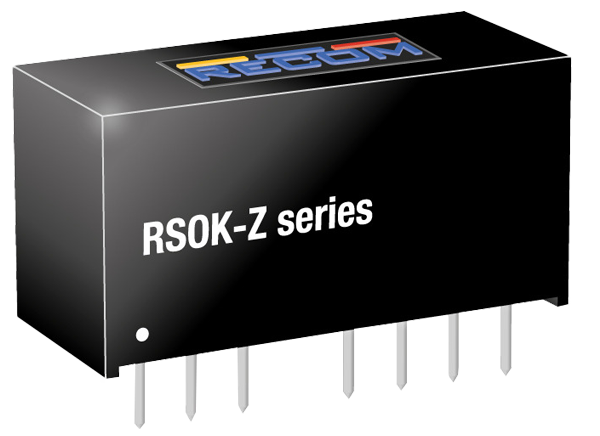

RECOM Power RSOK-Z 1W Single-Output DC/DC Converters
RECOM Power RSOK-Z 1W Single-Output DC/DC Converters offer a wide 4:1 input voltage range from 9VDC to 36VDC and on/off control for added convenience and precision. High accuracy and tight line and load regulation ensure reliable performance even under challenging conditions. These modules are certified for IEC/EN/UL 62368-1, making them suitable for a variety of industrial applications. Protections include continuous short circuit and undervoltage lockout (UVLO) for safety and security. Additional features include no minimum load required, 3kVDC/1min basic isolation, through-hole mounting, and a SIP8 package with 21.8mm x 9.2mm x 11.1mm dimensions (L x W x H). RECOM Power RSOK-Z 1W Single-Output DC/DC Converters operate in an industrial temperature range of -40°C to +105°C with derating.
Features
- Single output
- Wide input voltage range
- SIP8 package
- Continuous short-circuit and UVLO protection
- No minimum load required
- High accuracy
- Tight line and load regulation
- Reliable performance even under challenging conditions
- Through-hole mounting
- On/off control for convenience and precision
- IEC/EN/UL 62368-1 certification
Specifications
- 1W power rating
- 4:1 input voltage range from 9VDC to 36VDC
- 3kVDC/1min basic isolation
- 21.8mm x 9.2mm x 11.1mm dimensions (L x W x H)
- -40°C to +105°C operating temperature range with derating
