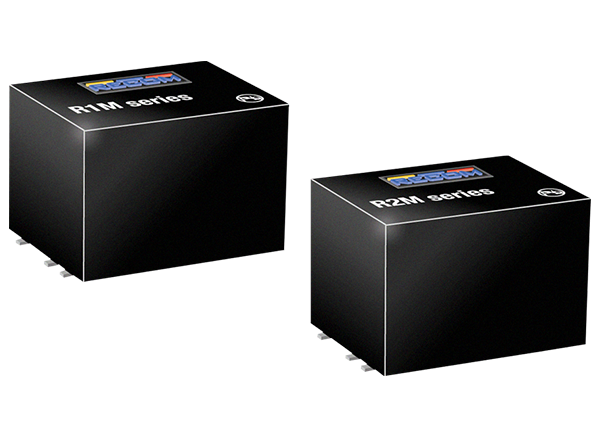

RECOM Power RxM Isolated DC-DC Converters
RECOM Power RxM Isolated DC-DC Converters are 1W, 2W, 3W, and 5W converters in either a compact SMD or DIP8 package. These converters feature a 4:1 input voltage range that covers 5V, 12V, 24V, and 48V rails, providing single- or dual-regulated, short-circuit-protected outputs. RECOM Power RxM Isolated DC-DC Converters have no minimum load requirement, 1.6kVDC/1min isolation, and a maximum capacitive load rating of 4700µF.
Features
- 4:1 input voltage range
- Regulated output
- Continuous short circuit protected
Specifications
- 1.6kVDC/1min isolation
- 1W, 2W, 3W, and 5W power rating
- SMD or DIP8 package
- R1M Series
- 1680µF maximum capacitive load
- Up to 81% efficiency
- -40°C to +90°C temperature range at full load
- R2M Series
- 2200µF maximum capacitive load
- Up to 81% efficiency
- -40°C to +85°C temperature range at full load
- R3M Series
- 4700µF maximum capacitive load
- Up to 84% efficiency
- -40°C to +71°C temperature range at full load
- R5M Series
- 4400µF maximum capacitive load
- Up to 86% efficiency
- -40°C to +50°C temperature range at full load
