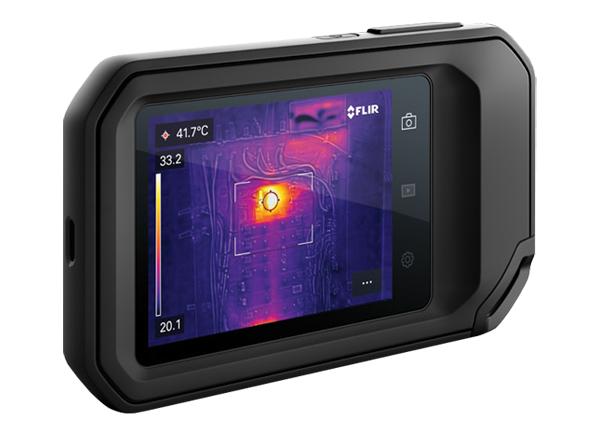

Teledyne FLIR C3-X Compact Thermal Camera
Teledyne FLIR C3-X Compact Thermal Camera features a 3.5" screen size, 128 x 96 (12,288px) thermal resolution, and a 5MP visual camera. The C3-X camera uses built-in FLIR Ignite™ cloud connectivity, enabling direct data transfer, storage, and backup, so images are always available on personal devices. The camera quickly uploads images and data, making it easy to communicate findings to customers. The C3-X makes it easy to identify hidden problems thanks to its combination of a thermal camera, a visual inspection camera, and an LED flashlight. The IP54-rated enclosure provides ruggedness and reliability. Teledyne FLIR C3-X Compact Thermal Camera is a professional tool for building, facilities maintenance, HVAC/R, electrical repair, and other troubleshooting applications.
Features
- Compact design
- Built-in FLIR Ignite cloud connectivity
- Uploads images and data quickly
- Quickly finds hidden faults
- Reduces diagnostic time
Applications
- Facility maintenance
- HVAC/R
- Electrical repairs
- Troubleshooting
Specifications
- 3.5" screen size
- 128 x 96 (12,288px) thermal resolution
- 5MP visual camera
- 53.6° field of view
- <70mK thermal sensitivity rating
- 8µm to 14µm spectral range
- 8.7Hz image frequency
- IP54 enclosure
- Withstands 2m (6.6ft) drop
- -20°C to +300°C object temperature range
- -10°C to +50°C operating temperature range

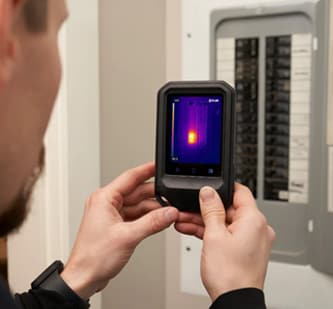

Application Example
