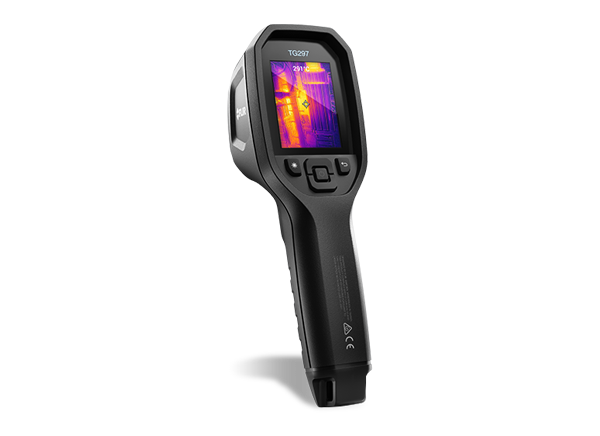

Teledyne FLIR TG297™ Industrial High-Temperature Thermal Camera
Teledyne FLIR TG297™ Industrial High-Temperature Thermal Camera combines accurate measurement with the ability to capture image temperatures as high as +1030°C. Users can see and measure the source of common issues involving electrical and mechanical systems, diagnose breakdowns, and confirm manufacturing processes. The thermal-enhanced Teledyne FLIR MSX® (Multi-Spectral Dynamic Imaging) improves image clarity by embossing visual scene details onto full thermal images. This offers the perspective and context to accurately target potential faults, troubleshoot repairs, and monitor processes. The TG297 is ready to use with a simple user interface, BLUETOOTH® connectivity, storage for up to 50,000 images, and a rechargeable Li-ion battery.
Features
- Identifies problems quickly
- True 160 x 120 IR pixel imager (19,200 pixels)
- High-temperature filter allows camera to measure image temperatures up to +1030°C
- 30:1 spot ratio allows scanning from safe distances
- Bullseye laser pointer
- Rugged environment capability
- Can withstand a 2m drop
- Bright LED flashlight
- Ergonomic handle design
- FLIR 2-10 warranty
- Produces crisp thermal images
- FLIR-patented MSX image enhancement
- Display and capture thermal or visual images with temperature readings
- Compare before-and-after stored images with FLIR Tools® software
- View thermal images in preferred color palette on bright 2.4" color display
Specifications
- Package contents include the camera, wrist strap lanyard, USB cable, pouch, and printed documentation
- Imaging and optical
- 160 x 120 pixel IR resolution
- Digital image enhancement
- <70mK thermal sensitivity/NETD
- 57° x 44° field of view (FOV)
- 0.3m (0.98ft) minimum focus distance
- 30:1 distance-to-spot ratio
- 8.7Hz image frequency
- Fixed focus
- Uncooled microbolometer focal plane array
- 7.5µm to 14µm spectral range
- 12µm detector pitch
- Image presentation
- 320 x 240-pixel display resolution
- 2.4" portrait screen size
- Iron, rainbow, white hot, black hot, arctic, and lava color palettes
- Automatic image adjustment
- MSX (Multi-Spectral Dynamic Imaging) visual with temperature reading image mode
- Gallery of images
- Measurement and analysis
- -25°C to +1030°C object temperature range
- 0.1°C IR temperature resolution
- Repeatability of the image is ±1% of reading or ±1°C, whichever is greater
- 150ms response time
- Continuous scanning IR thermometer measurement
- 0.26m (0.85ft) minimum measurement distance
- Center spot on/off spotmeter
- Set-up and service functions
- Set-up commands
- Local adaptation of units, language, date, and time formats
- Screen brightness (high, medium, and low)
- Gallery and deletion of images
- 4 preset levels of emissivity correction with custom adjustment of 0.1 to 0.99
- Set-up commands
- Image storage and visual camera
- 50,000 image storage capacity on 4GB card
- JPEG image file format with spot temperature data
- 2MP (1600px x 1200px) digital camera resolution
- 71° x 56° field of view (FOV), adapts to IR lens
- Light and laser
- 100lm LED flashlight with on/off option
- Class 1 laser projects center spot and outlines circular measurement area to indicate size
- Data communication interfaces
- Bluetooth BLE
- USB Type-C™ for data transfer and power
- General
- Rechargeable 3.7V Li-ion battery
- Battery operating time provides 5hrs of scanning
- Battery charging time of 4hrs to 90%
- 0.394kg (13.9oz) weight
- 210mm x 64mm x 81mm (8.3" x 2.5" x 3.2") dimensions (LxWxH)
- Shock/vibration
- 25g (IEC 60068-2-27)
- 2g (IEC 60068-2-6)
- Off, 5-minute, 15-minute, and 30-minute adjustable power management
