THAT Corporation 1200-DEMO InGenius® Demonstration System
THAT Corporation 1200-DEMO InGenius® Line Receiver IC Demonstration System is a self-contained, completely assembled, and tested circuit board designed to demonstrate the 1200, 1203, and 1206 line receiver ICs. The 1200-DEMO includes XLR connectors for signal input and output and a three-pin header to connect to an external regulated DC power supply.
Associated Products
THAT Corporation 1200 Series InGenius® Balanced Line Receiver ICs
Designed to overcome poor common-mode rejection in real-world applications.

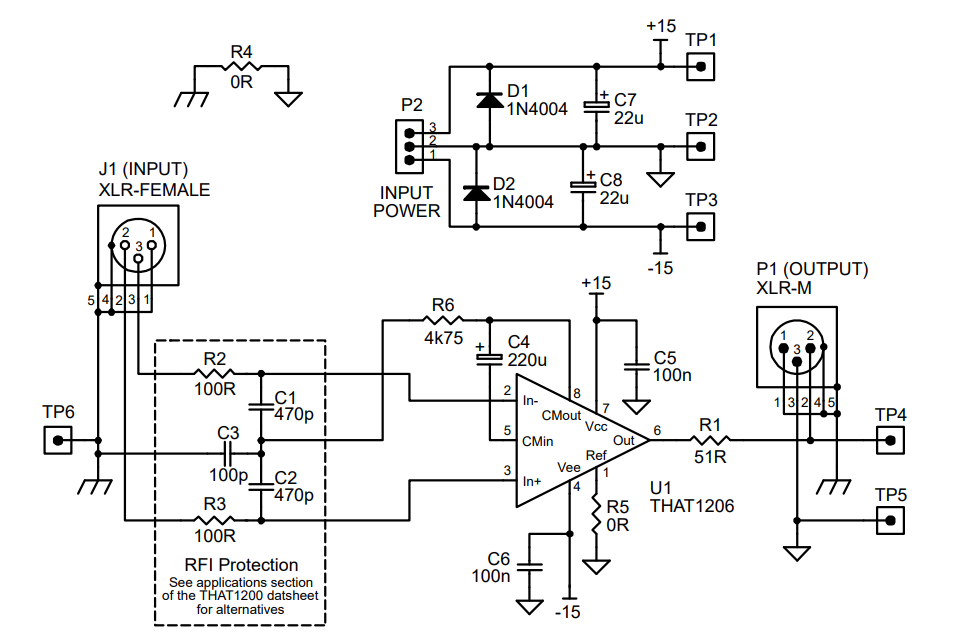

Schematic

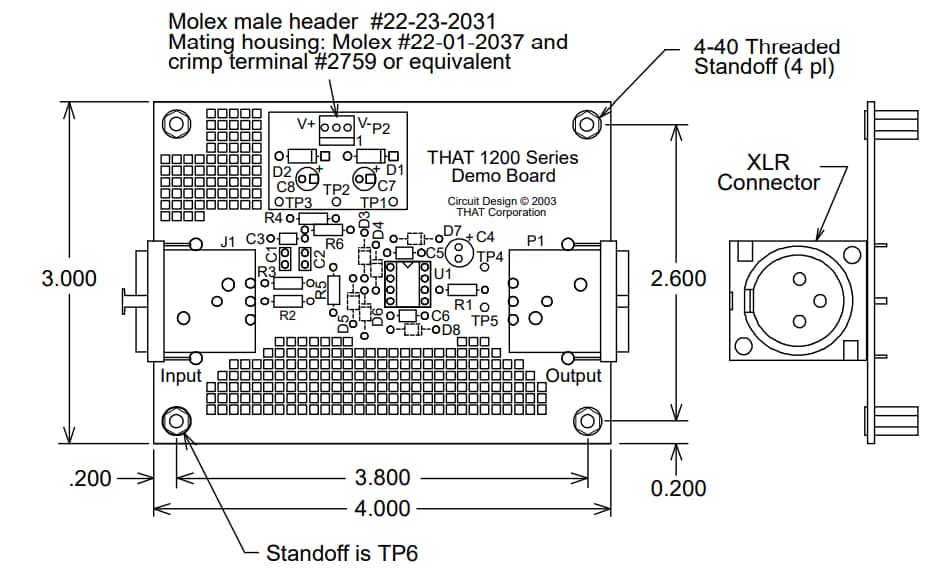

Outline Drawing In
