XMOS XCORE.AI eXplorerKIT
XMOS XCORE.AI eXplorerKIT supports testing across multiple applications and functions, making it a general-purpose software development board for simple tests and demos. The kit includes the XK-EVK-XU316 explorer board for the xcore.ai crossover processor. The processor is easy to use and provides advanced features on a small, low-cost platform.
The XMOS XCORE.AI eXplorerKIT is an ideal platform for functions ranging from AI on the edge and robotics to networking and digital audio.
Kit Contents
- The XCORE.AI crossover processor
- Four general-purpose LEDs
- Two general-purpose push-button switches
- A PDM microphone connector
- Audio codec with line-in and line-out jacks
- QSPI flash memory
- LPDDR1 external memory
- 58 GPIO connections from tiles 0 and 1
- Micro USB for power and host connection
- MIPI connector for an MIPI camera
- xSYS2 connector for debug adapter
- A reset switch with an LED to indicate running
Additional Resources
Associated MCUs
XMOS XCORE.AI Multicore Microcontrollers
Features the low latency and timing of the xCORE architecture for mainstream embedded applications.
Board Elements
A: xcore.ai (XU316-1024-FB265-C32) multicore microcontroller device
B: Four general-purpose LEDs
C: Two general-purpose push-button switches
D: A PDM microphone connector
E: An audio codec with 3.5mm line-in and line-out connectors
F: A QSPI flash, 32Mbit
G: An LPDDR1 external memory, 1Gbit
H: 58 GPIO connections from tiles 0 and 1, arranged on 0.1” grids
J: A micro USB connector for power and connection to a USB host
K: A WiFi module with an aerial. L: A MIPI connector for connection to a MIPI camera
M: An integrated xTAG4 debug adapter
N: A reset switch and an LED to indicate that the chip is running (not in reset)

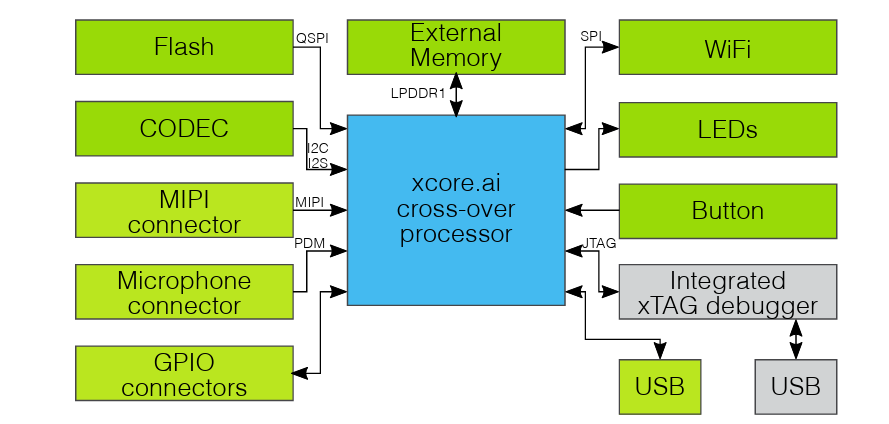

Block Diagram
