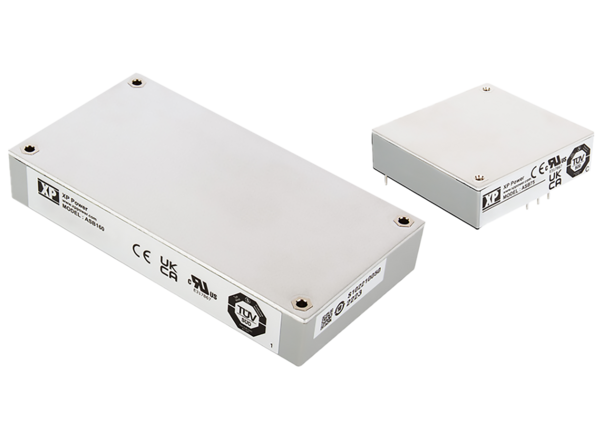

XP Power ASB Series Baseplate-cooled AC-DC Power Supplies
XP Power ASB Series Baseplate-cooled 75W to 160W AC-DC Power Supplies are low-profile, compact, and baseplate-cooled AC-DC power supplies that require no external components. These power supplies include a built-in EMC filter and bulk storage capacitor that provide a complete AC-DC power solution. The ASB power supplies are available in 75W, 110W, and 160W versions. These power supplies offer high efficiency and reduce failure rate through effective heat exhaustion in a baseplate-cooled design. The ASB power supplies operate from 90VAC to 264VAC input voltage range and -40°C to 90°C baseplate temperature range. Typical applications include IoT and Industry 4.0, process control, robotics, test and measurement, industrial displays, and factory automation.
Features
- 75W, 110W, and 160W versions
- 90VAC to 264VAC input voltage range
- 12VDC to 54VDC single output voltage range
- ±5% output voltage trim
- Up to 93% high efficiency
- Class B conducted and radiated emissions
- -40°C to 90°C operating baseplate temperature range
- Over-Current Protection (OCP)
- Over-Voltage Protection (OVP)
- Over-Temperature Protection (OTP)
- Optional heatsink available
- No external components required
Applications
- Test and measurement
- Sensing and detection
- Industrial displays
- IoT and Industry 4.0
- Robotics
- Process control
- Factory automation
