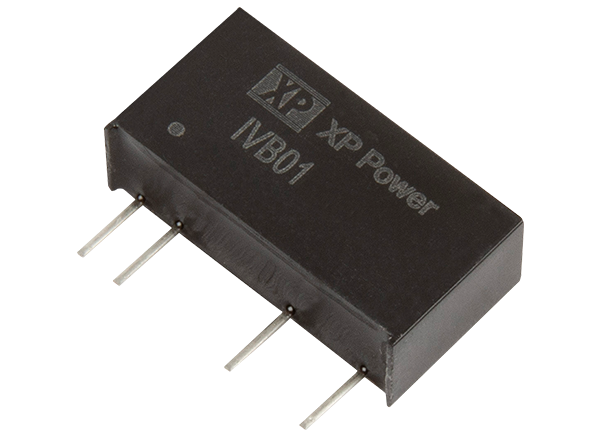

XP Power IVB Series DC-DC Converters
XP Power IVB Series DC-DC Converters feature an unregulated single output design and a 3kVDC functional isolation rating. These converters offer short-circuit protection and a compact, long-lasting design with high efficiency. The IVB series is ideal for isolating voltage rails in distributed power supply architectures such as digital, analog, relay, and data circuits. XP Power IVB Series DC-DC Converters have a high operating temperature range of -40°C to +105°C and are suitable for industrial electronics, robotics, and instrumentation.
Features
- Unregulated single output
- Continuous short-circuit protection
- Compact, long-lasting design
- High efficiency
Applications
- Industrial electronics
- Instrumentation
- Robotics
- Technology
Specifications
- ±10% input range
- 3.3VDC to 24VDC single output voltage range
- SIP7 package
- 3kVDC functional isolation
- Class B conducted and radiated emissions
- -40°C to +105°C operating temperature range
- Full load to +100°C ambient temperature
- 19.65mm x 6mm x 10.16mm dimensions
