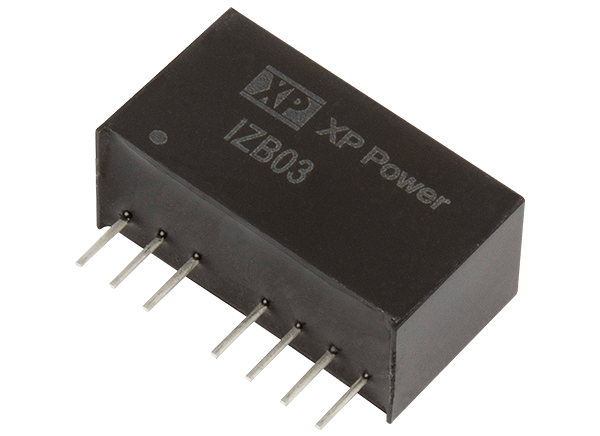

XP Power IZB Series DC-DC Converters
XP Power IZB Series DC-DC Converters feature a regulated single output, 2:1 input range, and 1.5kVDC functional isolation rating. These converters have a 3W power rating, an industry-standard SIP8 format compact design, and continuous short-circuit protection. The IZB series offers remote On/Off, an enhanced ripple filter function, and is an ideal solution for isolating voltage rails in distributed power supply architectures. XP Power IZB Series DC-DC Converters have a -40°C to +85°C operating temperature range and are suitable for industrial electronics, robotics, and instrumentation.
Features
- Regulated single output
- 2:1 input range
- Continuous short-circuit protection
- High efficiency
- Remote On/Off
- Enhanced ripple filter function
Applications
- Industrial electronics
- Instrumentation
- Robotics
- Technology
Specifications
- 3.3VDC to 24VDC single output voltage range
- SIP8 package
- 1.5kVDC functional isolation, optional 3kVDC
- 3W power rating
- Class B conducted and radiated emissions
- -40°C to +85°C operating temperature range
- 22mm x 9.5mm x 12mm dimensions
