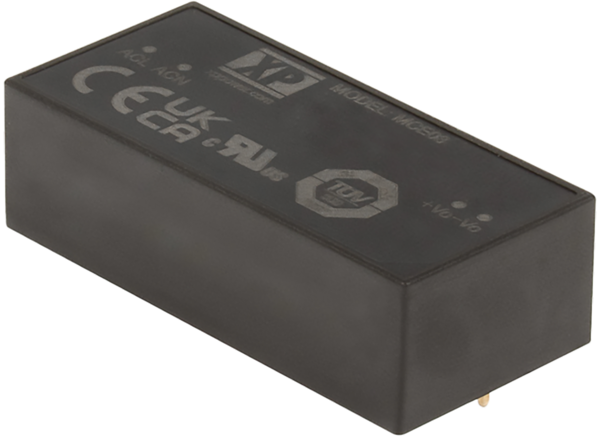

XP Power MCE Series 3W to 40W Medical AC-DC Power Supplies
XP Power MCE Series 3W to 40W Medical AC-DC Power Supplies are PCB mount single-output AC-DC power supplies. These power supplies offer single-output voltages ranging from 3.3VDC to 48VDC and power outputs from 3W to 40W. The MCE AC-DC power supplies are designed specifically for medical applications with 2xMOPP isolation and are also suitable for Class II applications. These power supplies are available in open-frame and encapsulated mechanical formats and offer up to 88% high efficiency. The MCE power supplies feature 4kVAC input to output isolation and operate within the -25°C to 70°C temperature range. These AC-DC power supplies conform to the IEC Class II insulation rating and offer overvoltage, overload, and short-circuit protections. Typical applications include medical imaging, patient monitoring, surgical equipment, and patient treatment.
Features
- Available in open frame and encapsulated formats
- Class B conducted and radiated emissions
- Low no-load power increases efficiency and reduces waste heat
- IEC class II insulation rating
- IEC 60601-1 medical safety agency approval, 2xMOPP
- Overvoltage, overload, and short circuit protections
Specifications
- 3W to 40W power outputs range
- 3.3VDC to 48VDC single voltage outputs range
- 80VAC to 264VAC input range
- Up to 88% high efficiency
- 4kVAC input to output isolation
- -25°C to 70°C operating temperature range
- Dimensions:
- MCE03: 40.6mm x 19.1mm x 19.1mm
- MCE10: 50.8mm x 29.2mm x 23.1mm
- MCE20: 66.0mm x 33.0mm x 23.4mm
- MCE40: 87.9mm x 38.1mm x 28.5mm
Applications
- Medical imaging
- Patient monitoring
- Surgical equipment
- Patient treatment
- Infusion pump
- Dental equipment
