YAGEO KNP Flame-Proof Type Wirewound Resistors
YAGEO KNP Flame-Proof Type Wirewound Resistors feature a power rating range of 1/4W to 7W and a resistance tolerance range of ±1% to ±5%. The resistor element is a resistive wire which is wound in a single layer on a ceramic rod, with tinned connecting wires of electrolytic copper welded to the end-caps. The ends of the resistive wire and the leads are connected to the caps by welding. YAGEO KNP Series Flame-Proof Type Wirewound Resistors are coated with layers of green color flame-proof lacquer.
Features
- 1/4W, 1/2W, 1W, 2W, 3W, 4W, 5W or 7W power rating options
- ±1%, or ±5% resistance tolerance
- ±300ppm°/C T.C.R.
- Flameproof multi-layer coating meets UL-94V-0
- Flameproof overload test feature meet UL-1412

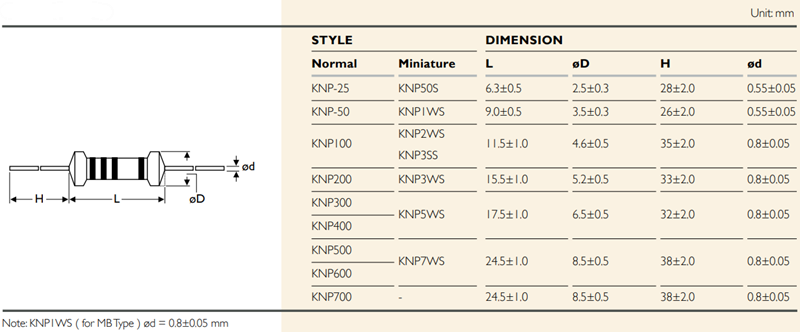

Dimensions
