Neutron Controls AURIX™ TC214/224/234 MCU Platform Module Kit

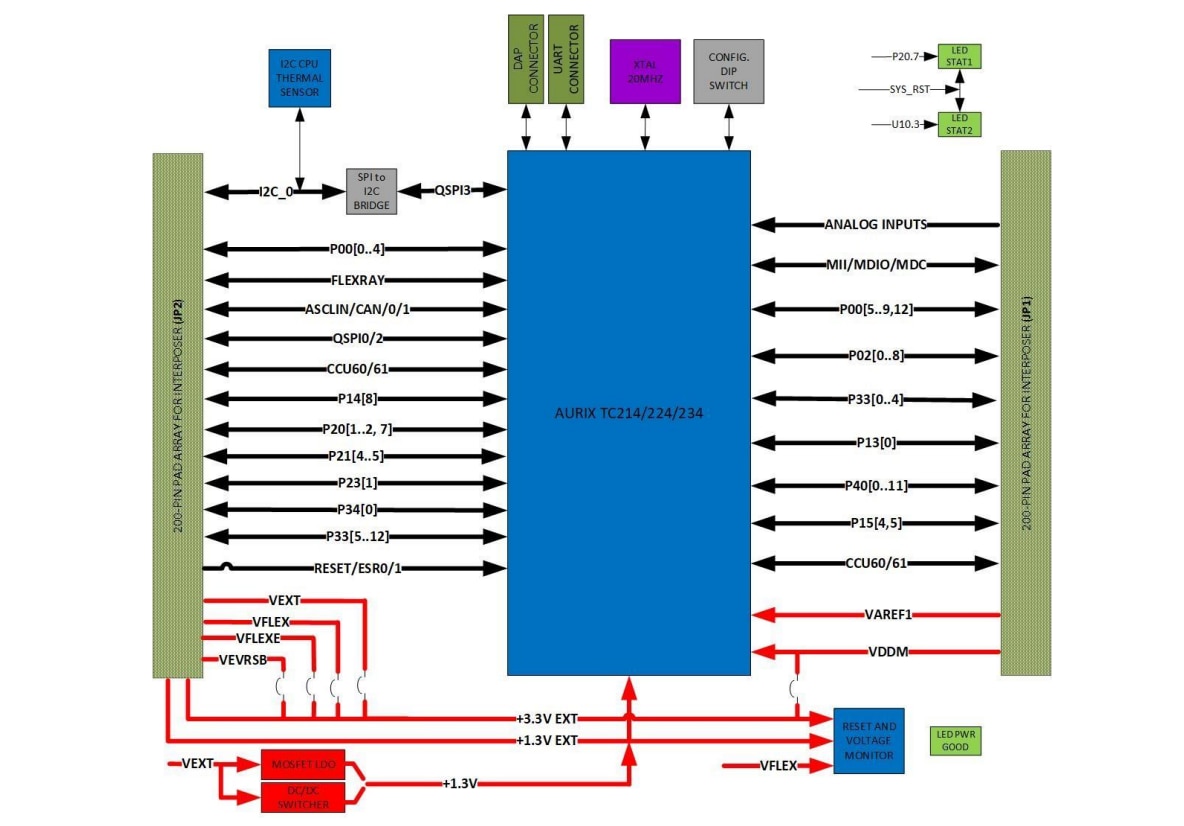

Neutron Controls AURIX™ TC214/224/234 MCU Platform Module Kit features a variety of SAK-TC2x4 MCU pin-compatible versions in a TQFP144 package. The MCU Platform Module Kits can easily be integrated using the MCU pins routed out to two 200-position pad arrays on the bottom.

The Neutron Controls AURIX TC214/224/234 MCU Platform Module Kit supports standalone operations by incorporating required power conversion, clock, system configuration, programming, and debugging connections.

The TC214/224/234 MCU Platform Module Kit offers a Board Support Package software with all required parts for MCU boot configuration and start-up, written in C code. Additionally, the Modules provide complete hardware development support with schematics, BOM, layout, Gerbers, PCB stack-up, and high-speed design rules.

Features

Infineon AURIX SAK-TC2x4 MCU pin-compatible versions (214/224/234) in TQFP144 package
Single core up to 200MHz, 2MB Flash, 736kB SRAM with HSM, ADAS and Ethernet
Default 20MHz crystal with optional socket for custom crystal
Core voltage SMPS for 1.3V generation (optional LDO)
Infineon DAP 10-position programming and debugging header (or alternative JTAG)
Generic UART/CLI 4-pin header with USB cable

SPI to I²C bridge for compatibility with other TC2xx devices
MCU temperature sensor connected to onboard I²C bus
System and MCU configuration 8-position DIP switch
"No solder" headers to configure module in standalone mode and external power
Critical voltage rails supervisor with LED
User "Status" and "Reset" LEDs
Compact design for easy target integration, line-up compatible with remaining TC2xx series
